Availability : Usually Ships in 3-5 Business Days

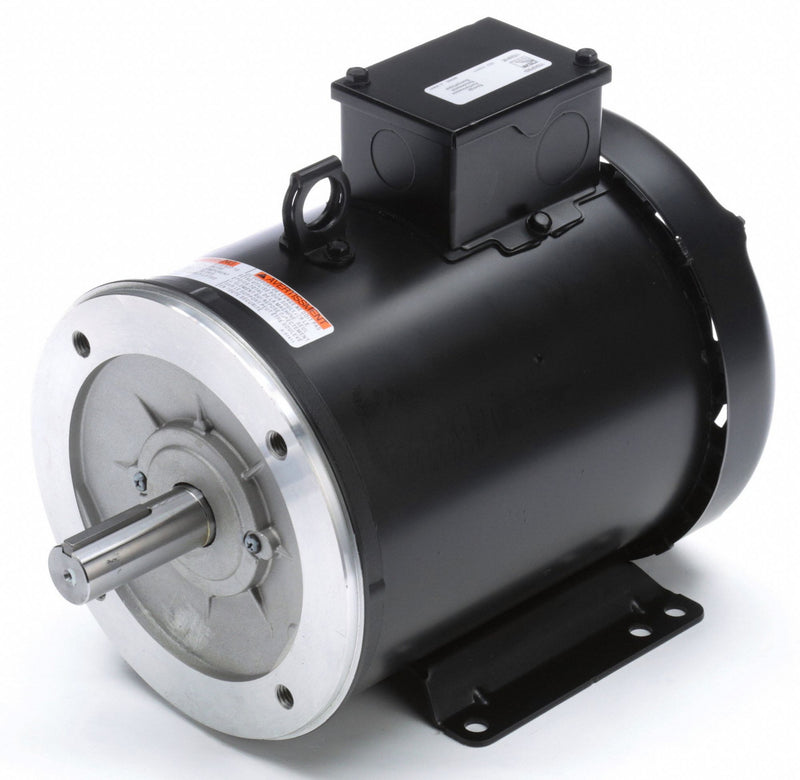

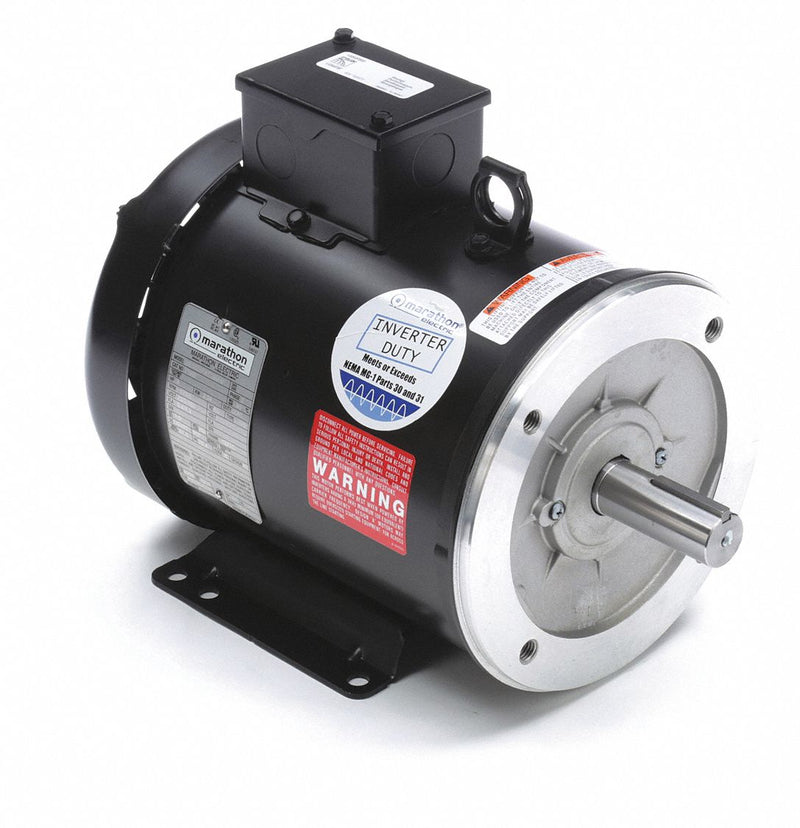

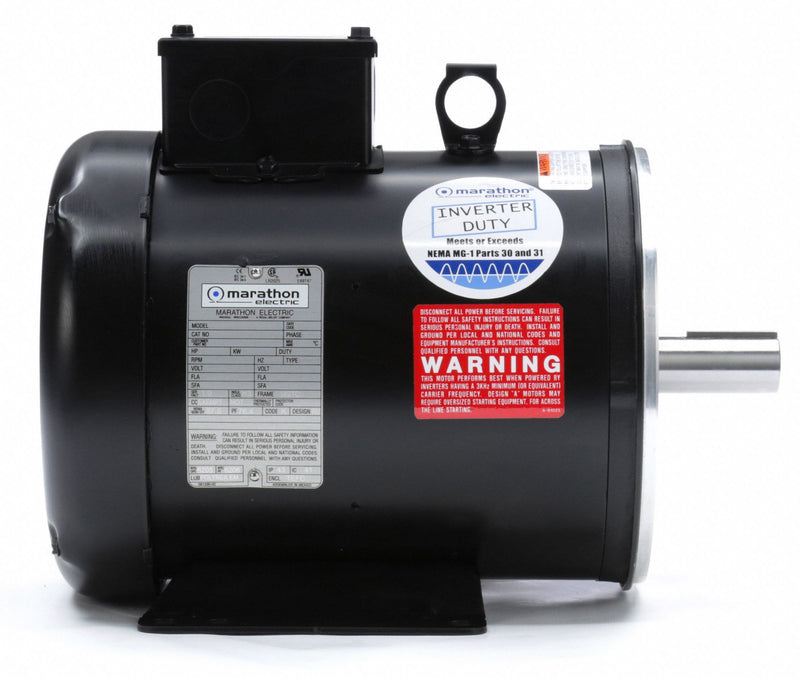

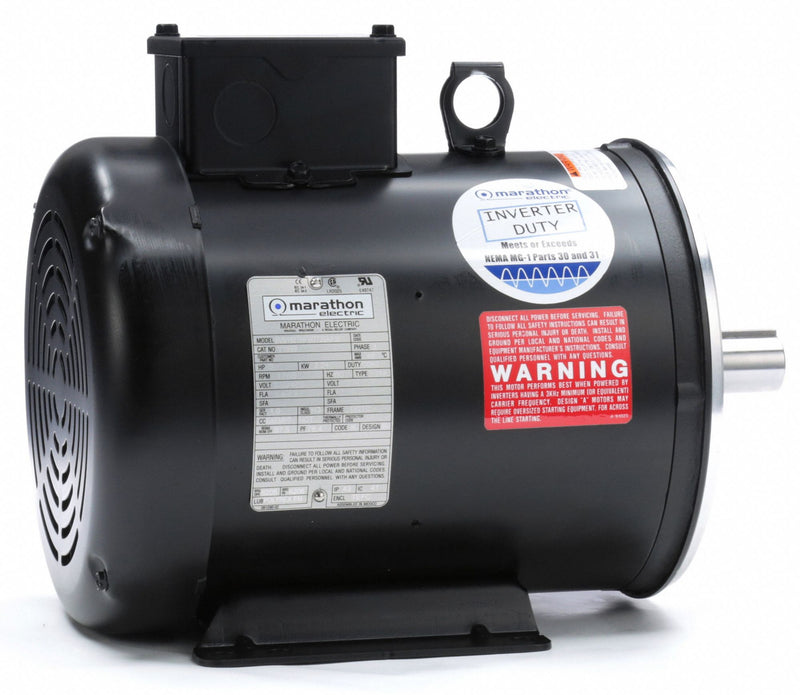

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 3; Torque: 9 ft-lb; Nameplate RPM: 1765; Speed Range: 20:1 CT; Max. Speed: 4,200 RPM; Frame: 182TC; Max. Operating Frequency: 120 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 8.4/4.2; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: None; Ins. Class: H; Insulation Feature: CR200 Magnet Wire Class H; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 75.5 %; Motor Efficiency Group: Energy Efficient; NEMA Design: A; Motor Frame Material: Rolled Steel; Finish: Black; Base: Bolt On; Duty: Continuous; Encoder Acceptable: No; Encoder Shaft: None; Motor Shaft Design: Keyed; Shaft Dia.: 1 1/8 in; Shaft Length: 2 7/8 in; Overall Length: 14 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460
Item | Vector Motor |
Motor Application | Crane |
Motor Design | 3-Phase |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
HP | 3 |
Torque | 9 ft-lb |
Nameplate RPM | 1765 |
Speed Range | 1 CT |
Max. Speed | 4,200 RPM |
Frame | 182TC |
Max. Operating Frequency | 120 Hz |
Voltage | 230/460 |
Hz | 60 |
Phase | 3 |
Full Load Amps | 8.4/4.2 |
Motor Mounting Type | Face/Base |
Motor Mounting Position | Horizontal |
Motor Shaft Rotation | CW/CCW |
Motor Bearings | Ball |
Motor Service Factor | 1 |
Motor Thermal Protection | None |
Ins. Class | H |
Insulation Feature | CR200 Magnet Wire Class H |
Ambient Temperature | 40 Degrees C |
Nominal Efficiency | 75.5 % |
Motor Efficiency Group | Energy Efficient |
NEMA Design | A |
Motor Frame Material | Rolled Steel |
Finish | Black |
Base | Bolt On |
Duty | Continuous |
Encoder Acceptable | No |
Encoder Shaft | None |
Motor Shaft Design | Keyed |
Shaft Dia. | 1 1/8 in |
Shaft Length | 2 7/8 in |
Overall Length | 14 in |
Standards | CE, CSA Certified (LR2025), UL Recognized (E49747) |
RPM Range | 1701-1800 |
Voltage Compatibility | 220-230/460, 230/460, 460 |
