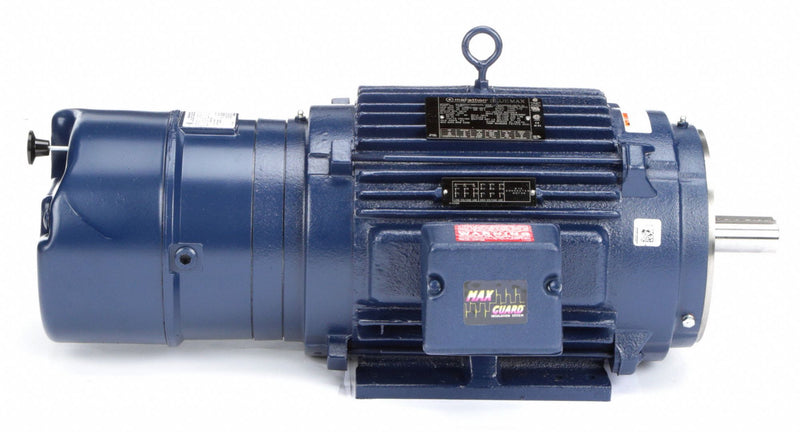

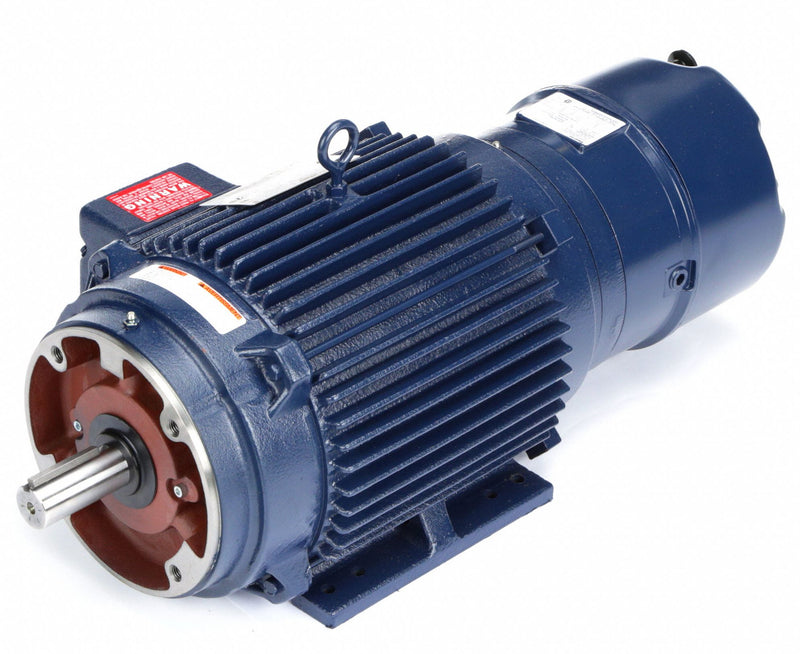

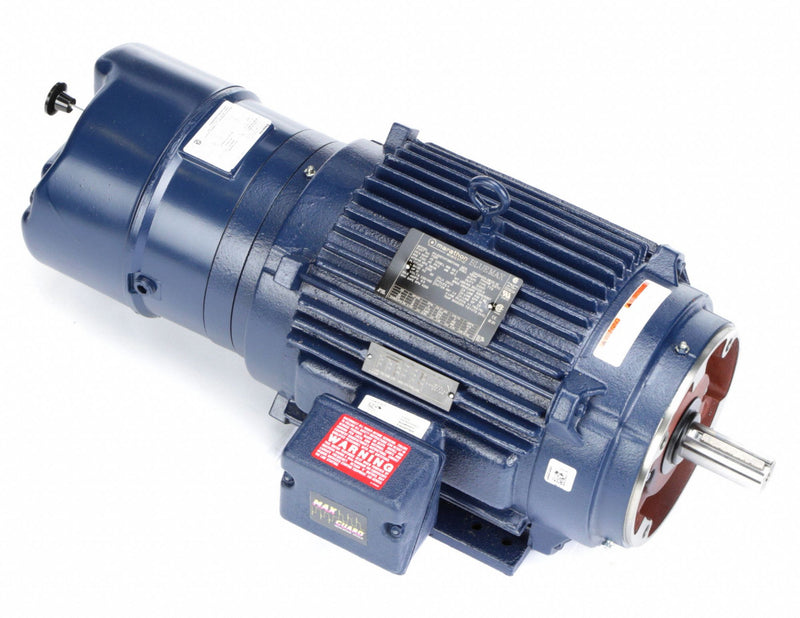

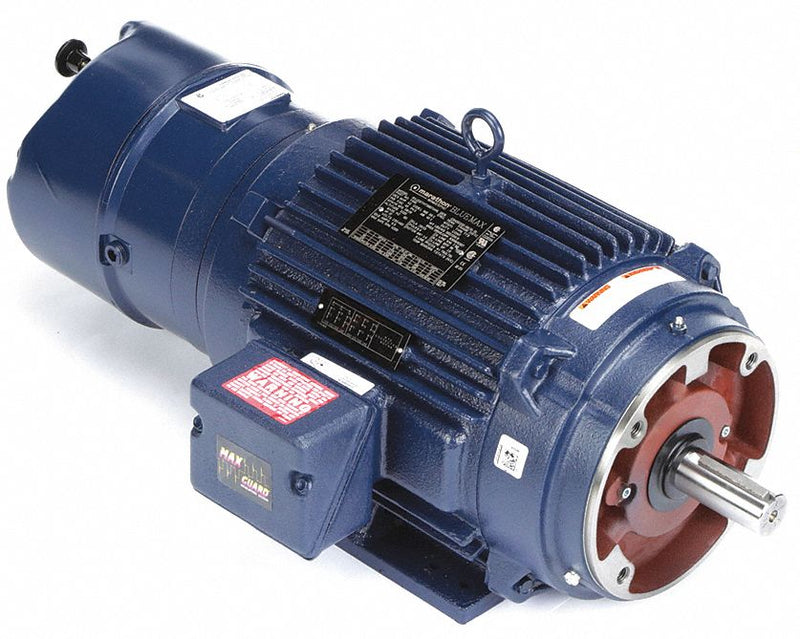

Marathon Motors 10 HP Vector Motor,3-Phase,1775 Nameplate RPM,230/460 Voltage,Frame 215TC - 215THTS8071

MarathonSKU: C1512997
MPN : 215THTS8071
Weight : 302.0 lb

filler

Price:
$9,482.59 $11,564.13

Availability : Usually Ships in 10-15 Business Days

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 10; Torque: 50 lb-ft; Nameplate RPM: 1775; Speed Range: 2000:1 CT; Max. Speed: 4,200 RPM; Frame: 215TC; Max. Operating Frequency: 120 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 26/13; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: F; Insulation Feature: Class F; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 91.7 %; Motor Efficiency Group: Energy Efficient; NEMA Design: A; Motor Frame Material: Cast Iron; Finish: Blue Enamel; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 1-1/8 in x 1-7/16 in; Motor Shaft Design: Keyed; Shaft Dia.: 1 3/8 in; Shaft Length: 3 1/8 in; Overall Length: 28 13/16 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460

ItemVector Motor
Motor ApplicationCrane
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP10
Torque50 lb-ft
Nameplate RPM1775
Speed Range1 CT
Max. Speed4,200 RPM
Frame215TC
Max. Operating Frequency120 Hz
Voltage230/460
Hz60
Phase3
Full Load Amps26/13
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Shaft RotationCW/CCW
Motor BearingsBall
Motor Service Factor1
Motor Thermal ProtectionT-Stat
Ins. ClassF
Insulation FeatureClass F
Ambient Temperature40 Degrees C
Nominal Efficiency91.7 %
Motor Efficiency GroupEnergy Efficient
NEMA DesignA
Motor Frame MaterialCast Iron
FinishBlue Enamel
BaseRigid
DutyContinuous
Encoder AcceptableYes
Encoder Shaft1-1/8 in x 1-7/16 in
Motor Shaft DesignKeyed
Shaft Dia.1 3/8 in
Shaft Length3 1/8 in
Overall Length28 13/16 in
StandardsCE, CSA Certified (LR2025), UL Recognized (E49747)
Warranty3 yr
RPM Range1701-1800
Voltage Compatibility220-230/460, 230/460, 460
