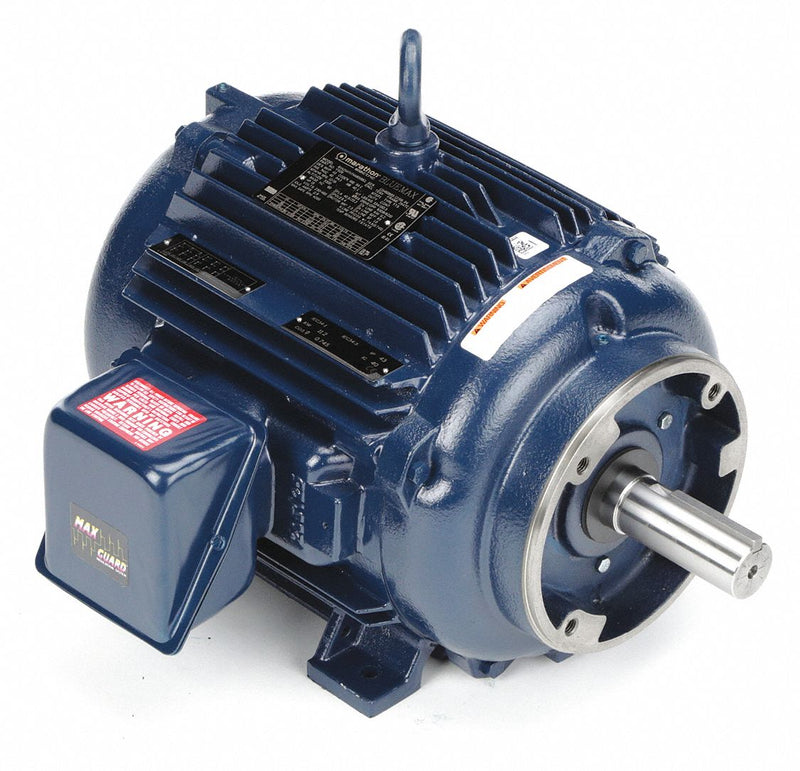

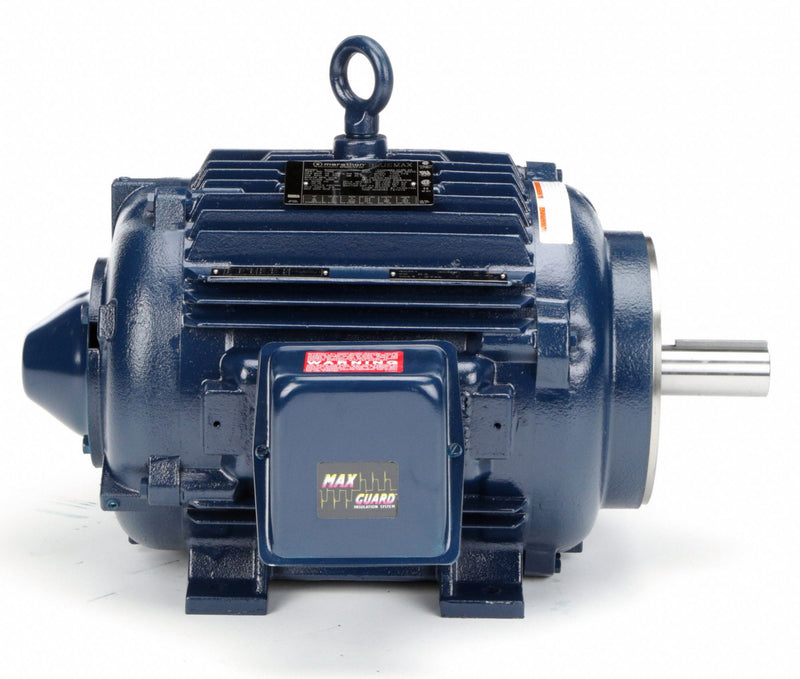

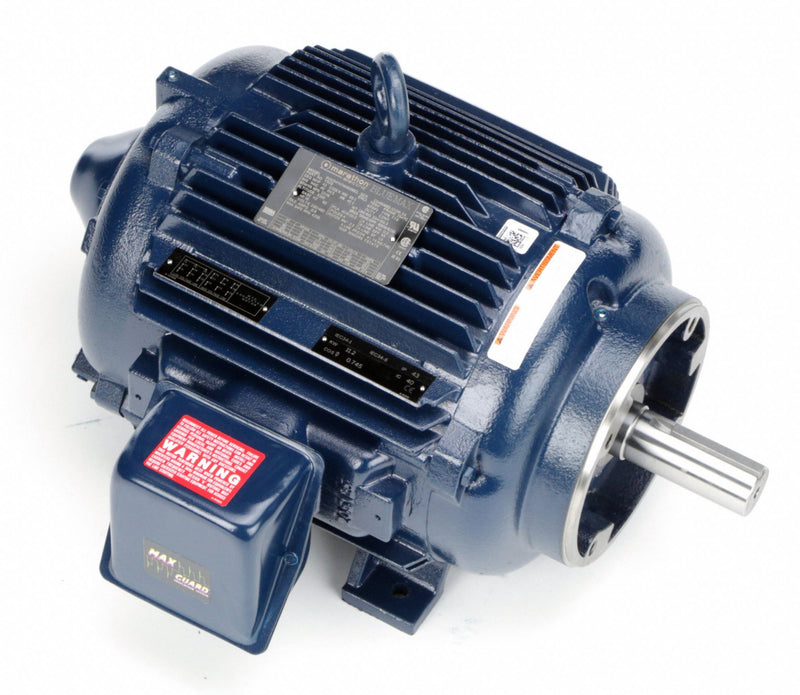

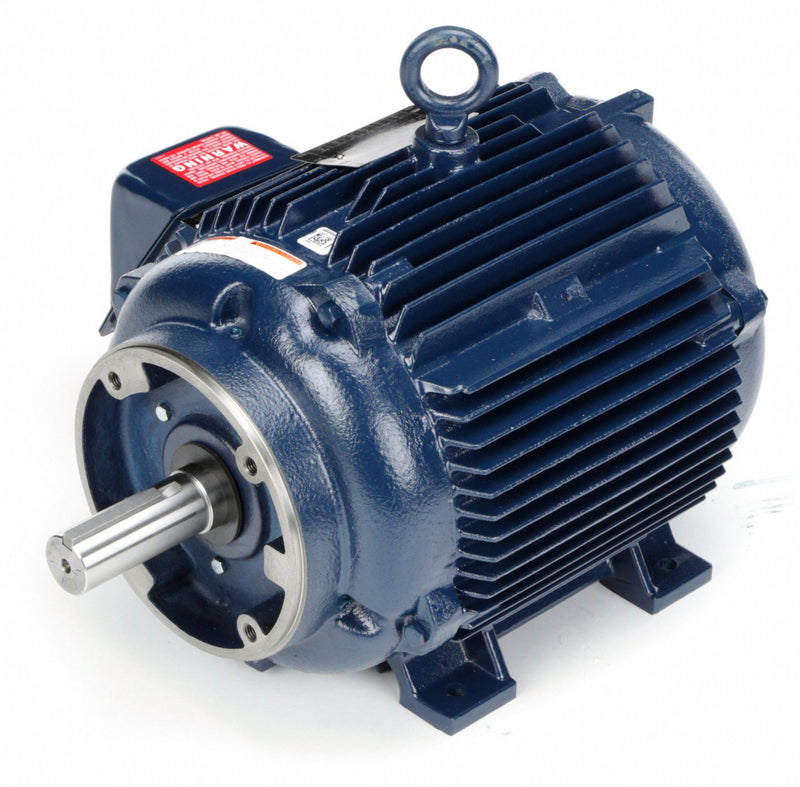

Marathon Motors 15 HP Vector Motor,3-Phase,1772 Nameplate RPM,230/460 Voltage,Frame 254TC - 254THTNA8058

MarathonSKU: C1513010
MPN : 254THTNA8058
Weight : 334.0 lb
filler

Price:
$3,640.59 $4,439.74

Availability : Usually Ships in 10-15 Business Days

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 15; Nameplate RPM: 1772; Speed Range: 2000:1 CT; Max. Speed: 4,200 RPM; Frame: 254TC; Max. Operating Frequency: 120 Hz; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 40.5/20.2; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: H; Insulation Feature: Class F; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 93.6 %; CC Number: CC003A; Motor Efficiency Group: NEMA Premium Efficient; NEMA Design: A; Motor Frame Material: Cast Iron; Finish: Blue Enamel; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 5/8 in x 1-3/4 in; Motor Shaft Design: Keyed; Shaft Dia.: 1 5/8 in; Shaft Length: 3 3/4 in; Overall Length: 23 3/8 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460

ItemVector Motor
Motor ApplicationCrane
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP15
Nameplate RPM1772
Speed Range1 CT
Max. Speed4,200 RPM
Frame254TC
Max. Operating Frequency120 Hz
Voltage230/460
Hz60
Phase3
Full Load Amps40.5/20.2
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Shaft RotationCW/CCW
Motor BearingsBall
Motor Service Factor1
Motor Thermal ProtectionT-Stat
Ins. ClassH
Insulation FeatureClass F
Ambient Temperature40 Degrees C
Nominal Efficiency93.6 %
CC NumberCC003A
Motor Efficiency GroupNEMA Premium Efficient
NEMA DesignA
Motor Frame MaterialCast Iron
FinishBlue Enamel
BaseRigid
DutyContinuous
Encoder AcceptableYes
Encoder Shaft5/8 in x 1-3/4 in
Motor Shaft DesignKeyed
Shaft Dia.1 5/8 in
Shaft Length3 3/4 in
Overall Length23 3/8 in
StandardsCE, CSA Certified (LR2025), UL Recognized (E49747)
Warranty3 yr
RPM Range1701-1800
Voltage Compatibility220-230/460, 230/460, 460
