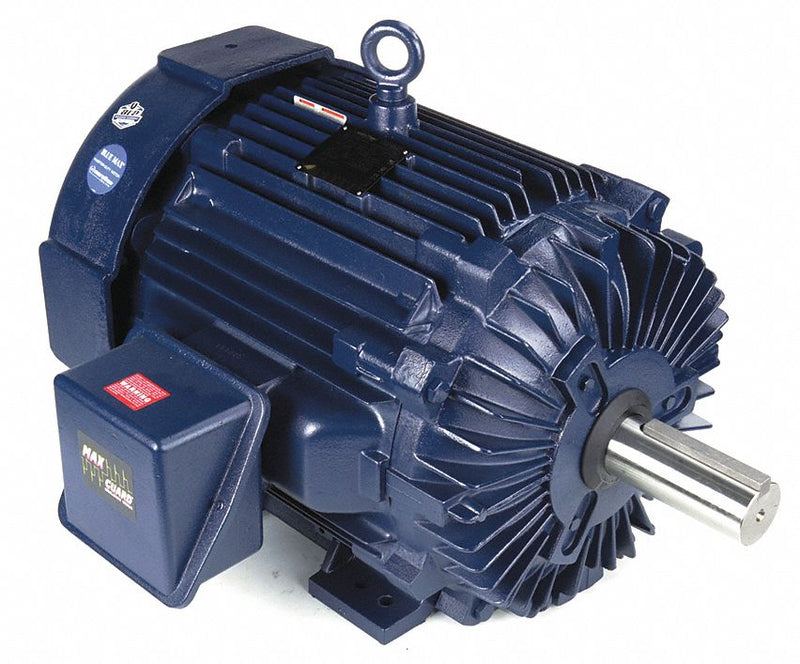

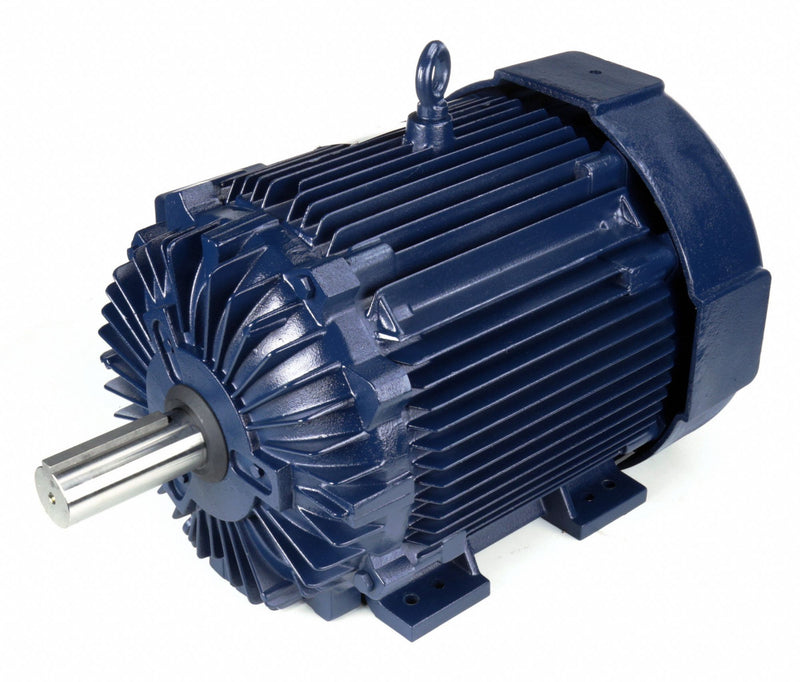

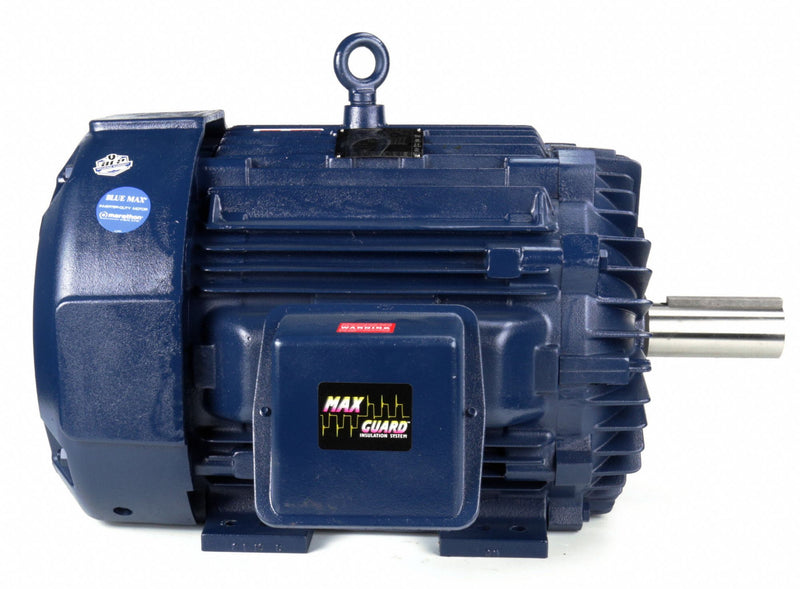

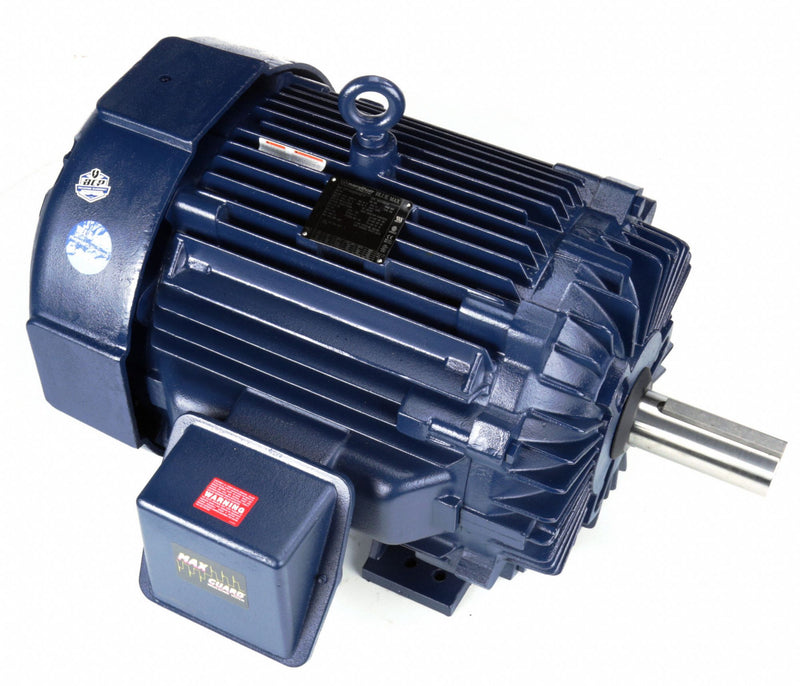

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 200; Nameplate RPM: 1790; Speed Range: 2000:1 CT; Max. Speed: 2,800 RPM; Frame: 445T; Max. Operating Frequency: 90 Hz; Voltage: 460; Hz: 60; Phase: 3; Full Load Amps: 230; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: H; Insulation Feature: Class F; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 75.5 %; Motor Efficiency Group: Energy Efficient; NEMA Design: A; Motor Frame Material: Cast Iron; Finish: Blue Enamel; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 1 in x 2 in; Motor Shaft Design: Keyed; Shaft Dia.: 3 3/8 in; Shaft Length: 8 3/4 in; Overall Length: 45 9/16 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 208-230/460, 460
| Item | Vector Motor |
| Motor Application | Crane |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 200 |
| Nameplate RPM | 1790 |
| Speed Range | 1 CT |
| Max. Speed | 2,800 RPM |
| Frame | 445T |
| Max. Operating Frequency | 90 Hz |
| Voltage | 460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 230 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Motor Thermal Protection | T-Stat |
| Ins. Class | H |
| Insulation Feature | Class F |
| Ambient Temperature | 40 Degrees C |
| Nominal Efficiency | 75.5 % |
| Motor Efficiency Group | Energy Efficient |
| NEMA Design | A |
| Motor Frame Material | Cast Iron |
| Finish | Blue Enamel |
| Base | Rigid |
| Duty | Continuous |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1 in x 2 in |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 3 3/8 in |
| Shaft Length | 8 3/4 in |
| Overall Length | 45 9/16 in |
| Standards | CE, CSA Certified (LR2025), UL Recognized (E49747) |
| Warranty | 3 yr |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208-230/460, 460 |
