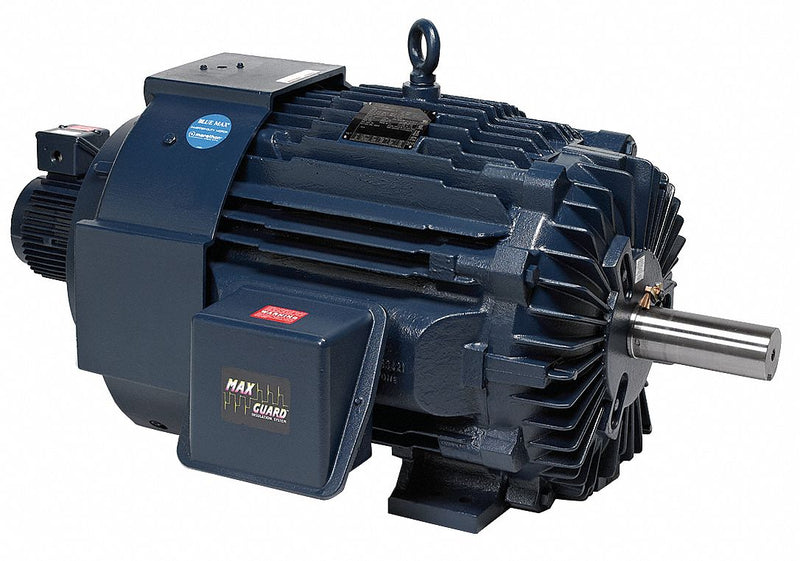

Marathon Motors 300 HP Vector Motor,3-Phase,1788 Nameplate RPM,460 Voltage,Frame 447/9T - 449THFS8037

MarathonSKU: C1519513
MPN : 449THFS8037
Weight : 1900.0 lb
filler

Price:
$41,635.47 $50,774.96

Availability : Ships in 30-40 Business Days

Vector Motor; Motor Application: Crane; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 300; Nameplate RPM: 1788; Speed Range: 2000:1 CT; Max. Speed: 2,800 RPM; Frame: 447/9T; Max. Operating Frequency: 90 Hz; Voltage: 460; Hz: 60; Phase: 3; Full Load Amps: 330; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Shaft Rotation: CW/CCW; Motor Bearings: Ball; Motor Service Factor: 1; Motor Thermal Protection: T-Stat; Ins. Class: H; Insulation Feature: Class F; Ambient Temperature: 40 Degrees C; Nominal Efficiency: 86.5 %; Motor Efficiency Group: Energy Efficient; NEMA Design: A; Motor Frame Material: Cast Iron; Finish: Blue Enamel; Base: Rigid; Duty: Continuous; Encoder Acceptable: Yes; Encoder Shaft: 1 in x 1-7/16 in; Motor Shaft Design: Keyed; Shaft Dia.: 3 3/8 in; Shaft Length: 8 3/4 in; Overall Length: 54 in; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); Warranty: 3 yr; RPM Range: 1701-1800; Voltage Compatibility: 208-230/460, 460

ItemVector Motor
Motor ApplicationCrane
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP300
Nameplate RPM1788
Speed Range1 CT
Max. Speed2,800 RPM
Frame447/9T
Max. Operating Frequency90 Hz
Voltage460
Hz60
Phase3
Full Load Amps330
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Shaft RotationCW/CCW
Motor BearingsBall
Motor Service Factor1
Motor Thermal ProtectionT-Stat
Ins. ClassH
Insulation FeatureClass F
Ambient Temperature40 Degrees C
Nominal Efficiency86.5 %
Motor Efficiency GroupEnergy Efficient
NEMA DesignA
Motor Frame MaterialCast Iron
FinishBlue Enamel
BaseRigid
DutyContinuous
Encoder AcceptableYes
Encoder Shaft1 in x 1-7/16 in
Motor Shaft DesignKeyed
Shaft Dia.3 3/8 in
Shaft Length8 3/4 in
Overall Length54 in
StandardsCE, CSA Certified (LR2025), UL Recognized (E49747)
Warranty3 yr
RPM Range1701-1800
Voltage Compatibility208-230/460, 460
