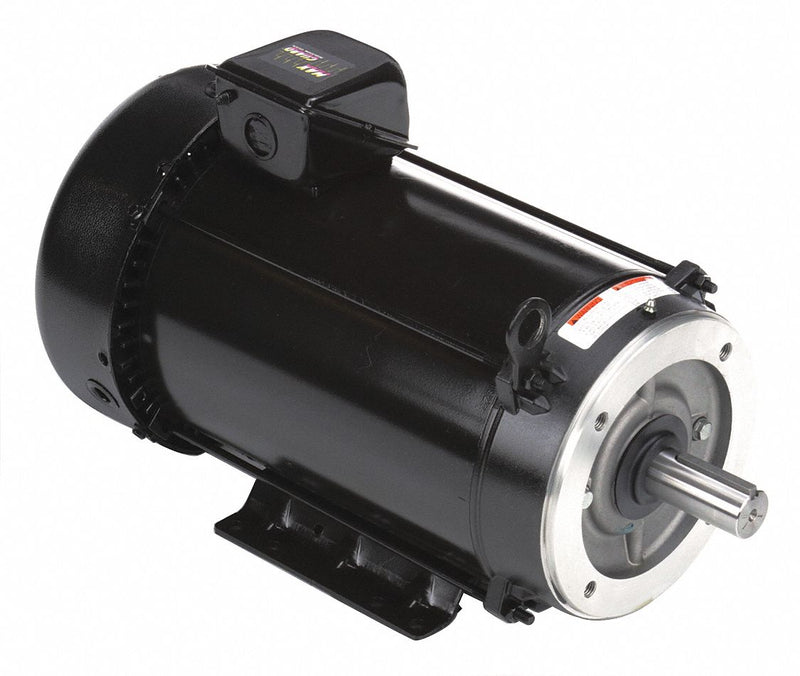

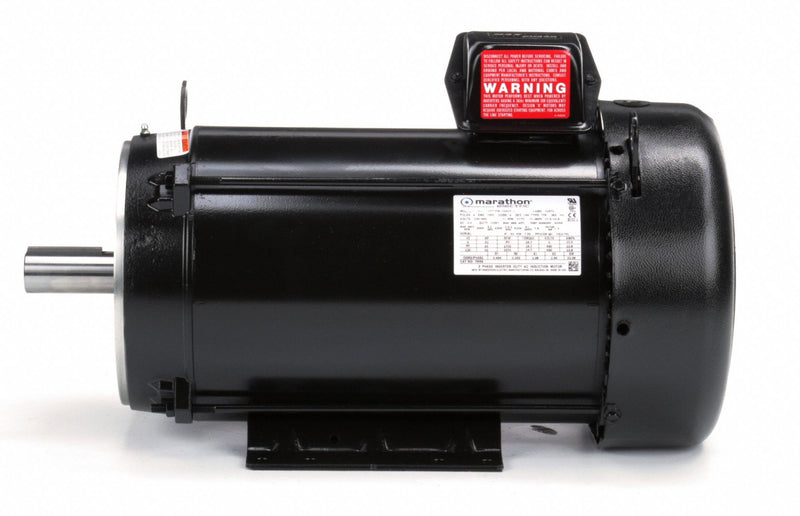

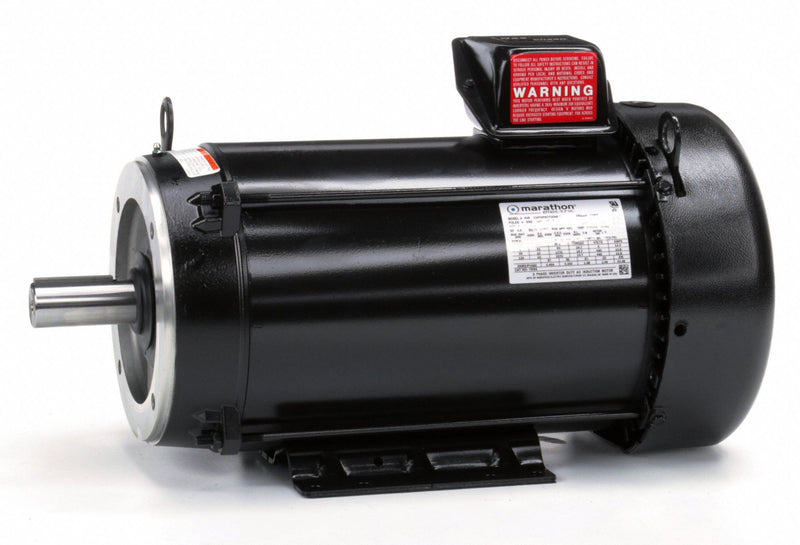

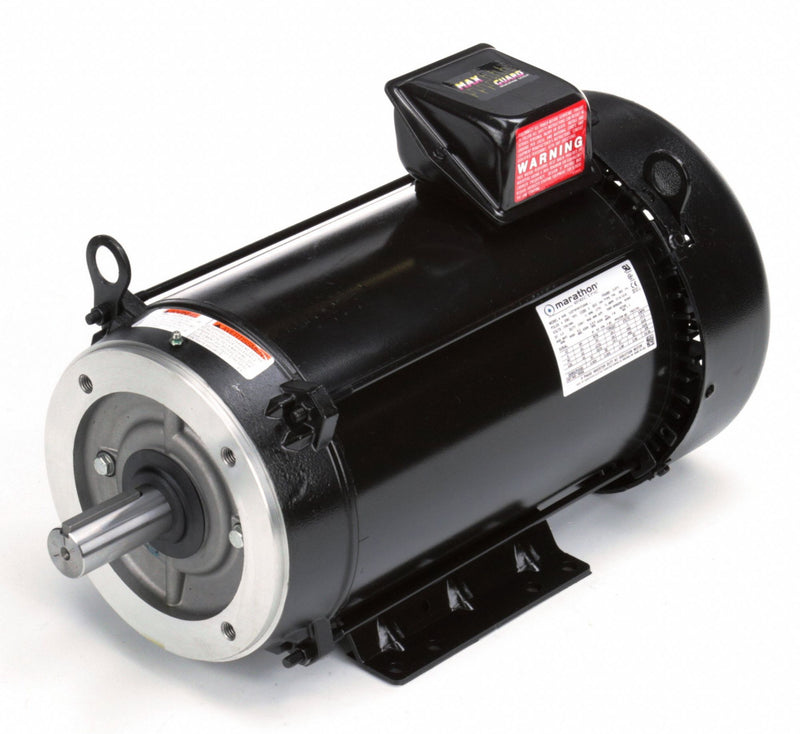

microMAX Vector-Duty 3-Phase Motors,Service factor: 1.0 Insulation: Class H Max. ambient: 40C Max. Operating Frequency: 120Hz Bearings: ball Rotation: CW/CCW,Suitable as a direct replacement for PMDC systems, multispeed motors, single-phase, and as a variable-speed upgrade from standard fixed-speed motor systems.,UL Recognized, CSA Certified.
| Item | Vector Motor |
| Motor Application | Crane |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 10 |
| Torque | 30 lb-ft |
| Nameplate RPM | 1770 |
| Speed Range | 1 CT |
| Max. Speed | 4,000 RPM |
| Frame | 215TC |
| Max. Operating Frequency | 120 Hz |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 27.6/13.8 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | All Angle |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Ins. Class | H |
| Insulation Feature | Patented MAX GUARD |
| Ambient Temperature | 40 Degrees C |
| Nominal Efficiency | 91.7 % |
| Motor Efficiency Group | Energy Efficient |
| NEMA Design | B |
| Motor Frame Material | Rolled Steel |
| Finish | Black |
| Base | Removable |
| Duty | Continuous |
| Encoder Acceptable | No |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 1/8 in |
| Overall Length | 22 1/4 in |
| Standards | CE, CSA Certified (LR2025), UL Recognized (E49747) |
| Warranty | 3 yr |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 220-230/460, 230/460, 460 |
