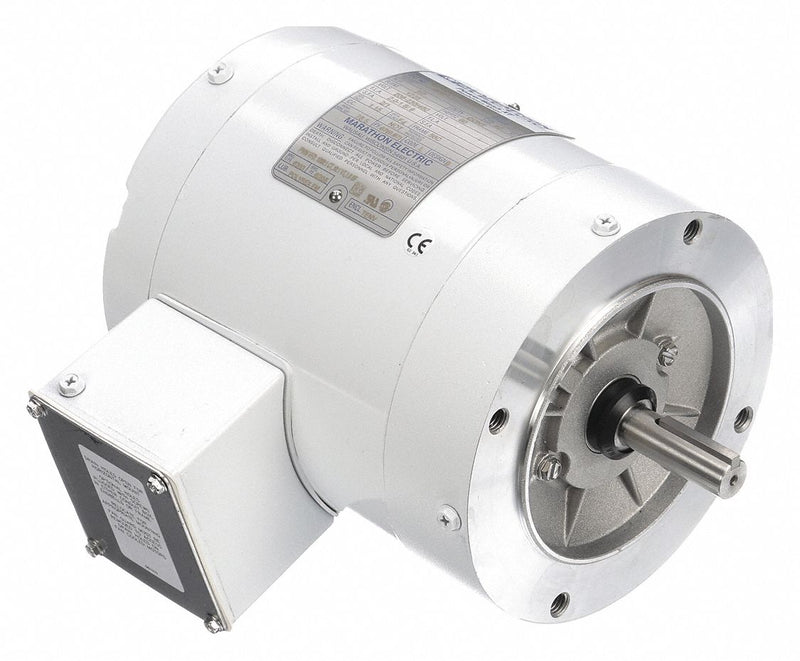

Washdown Motor; Motor Application: Washdown; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 1/2; Nameplate RPM: 1725; Frame: 56C; NEMA Design: B; Motor Shaft Rotation: CW/CCW; Voltage: 208-230/460; Full Load Amps: 2-1.8/.9; Phase: 3; Hz: 60; Motor Mounting Position: All Angle; Motor Mounting Type: Face; Motor Bearings: Ball; Motor Frame Material: Epoxy Coated Rolled Steel; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 1 15/16 in; Motor Shaft Design: Keyed; Body Dia.: 6 1/2 in; Length Less Shaft: 8 1/2 in; Overall Length: 10 1/16 in; Ins. Class: F; RPM Range: 1701-1800; Duty: Continuous; Shaft Material: 303 Stainless Steel; Conduit Box: Oversize Cast Aluminum with Nitrile Gasket; Drain Plugs: (4) Drain Plugged Holes in Each End; Endshields: Cast Aluminum; Motor Efficiency Group: Premium Efficient; Nominal Efficiency: 78.5 %; Application: Washguard; Includes: Max Guard Insulation, Stainless Steel Hardware, USDA-Approved White Epoxy Paint; Standards: CE, CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
| Item | Washdown Motor |
| Motor Application | Washdown |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/2 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 2-1.8/.9 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Motor Frame Material | Epoxy Coated Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 15/16 in |
| Motor Shaft Design | Keyed |
| Body Dia. | 6 1/2 in |
| Length Less Shaft | 8 1/2 in |
| Overall Length | 10 1/16 in |
| Ins. Class | F |
| RPM Range | 1701-1800 |
| Duty | Continuous |
| Shaft Material | 303 Stainless Steel |
| Conduit Box | Oversize Cast Aluminum with Nitrile Gasket |
| Drain Plugs | (4) Drain Plugged Holes in Each End |
| Endshields | Cast Aluminum |
| Motor Efficiency Group | Premium Efficient |
| Nominal Efficiency | 78.5 % |
| Application | Washguard |
| Includes | Max Guard Insulation, Stainless Steel Hardware, USDA-Approved White Epoxy Paint |
| Standards | CE, CSA Certi |
