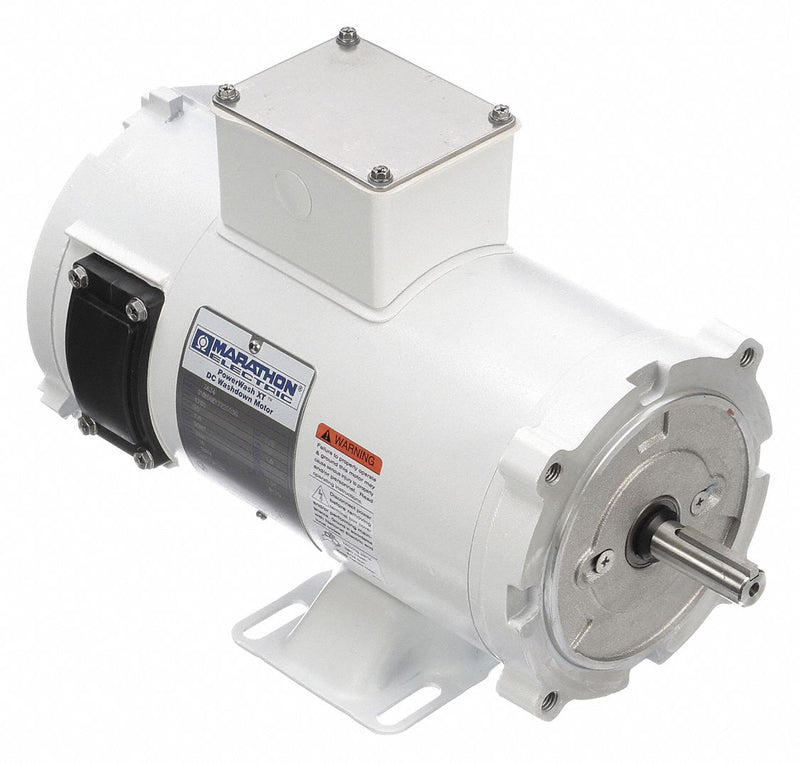

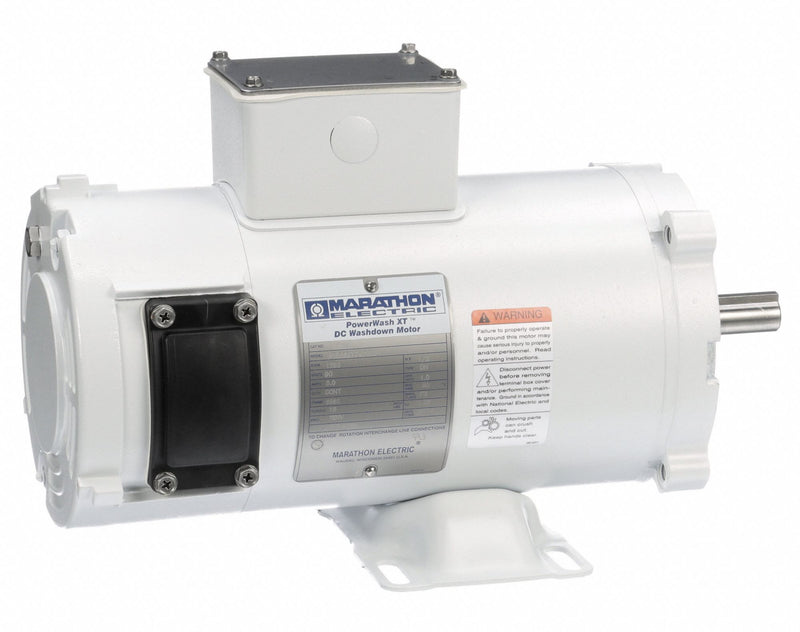

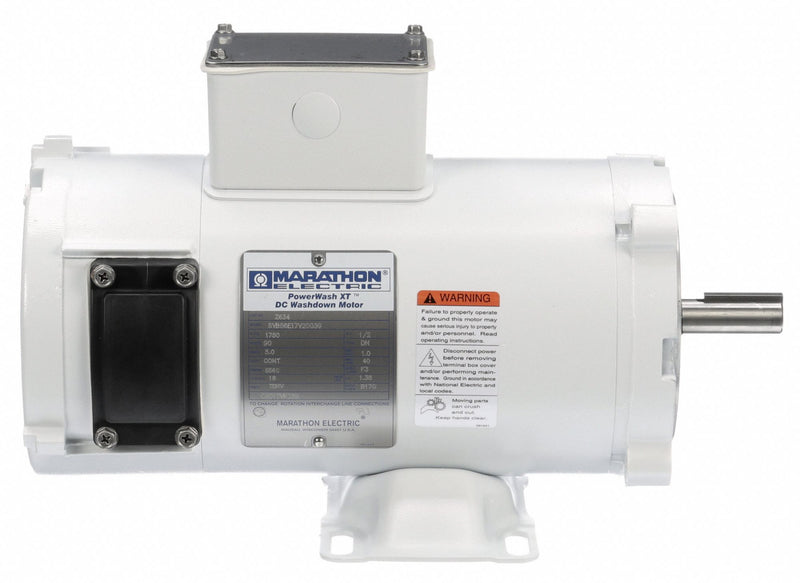

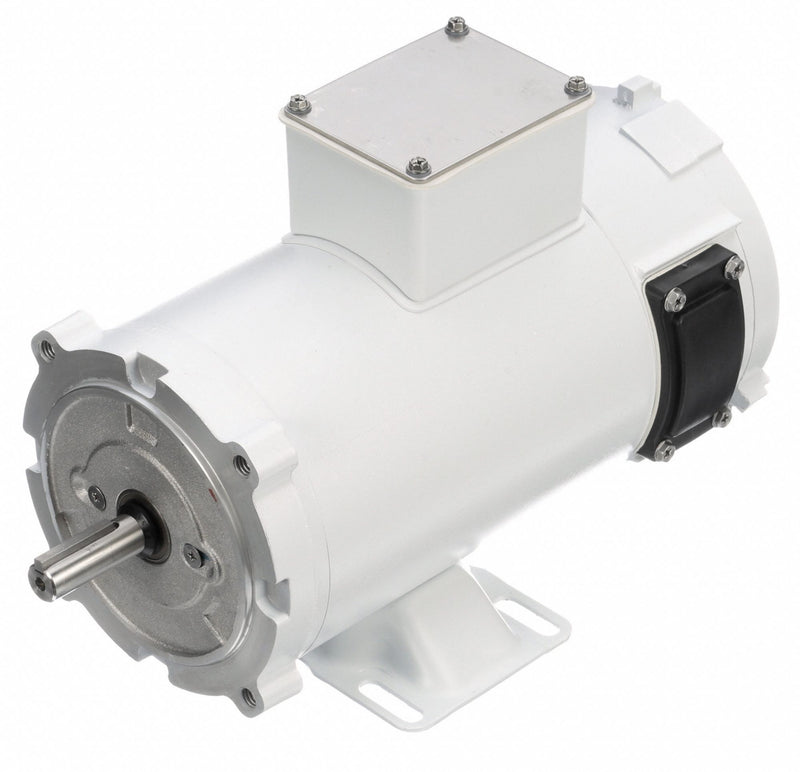

Keep food processing machines moving with this washdown DC motor. It is designed to withstand frequent washdown processes. The totally enclosed, nonventilated enclosure design helps resist contamination by preventing air from moving freely between the inside and outside of the frame. The design helps protect the motor from dampness and airborne particles. It resists overheating by radiating excess heat through its finned body design.
| Item | DC Washdown Motor |
| Motor Application | Variable Speed |
| Motor Design | DC Permanent Magnet |
| HP | 1/2 |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Nameplate RPM | 1750 |
| Voltage | 90V DC |
| Full Load Amps | 4.9 A |
| Full Load Torque | 18 lb-in |
| Frame | 56C |
| Motor Mounting Type | Face/Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Rotation | CW/CCW |
| Overall Length | 13 3/4 in |
| Length Less Shaft | 11 5/8 in |
| Body Dia. | 5 31/50 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Base Mounting O.C. | 3 in x 4-22/25 in |
| Face Mounting O.C. | (4) Locating Screws 90 Degrees Apart |
| Brush Type | Carbon |
| Features | Washdown |
| Standards | UL(E49747) CSA(E49747) |
| Voltage Compatibility | 90V DC |
