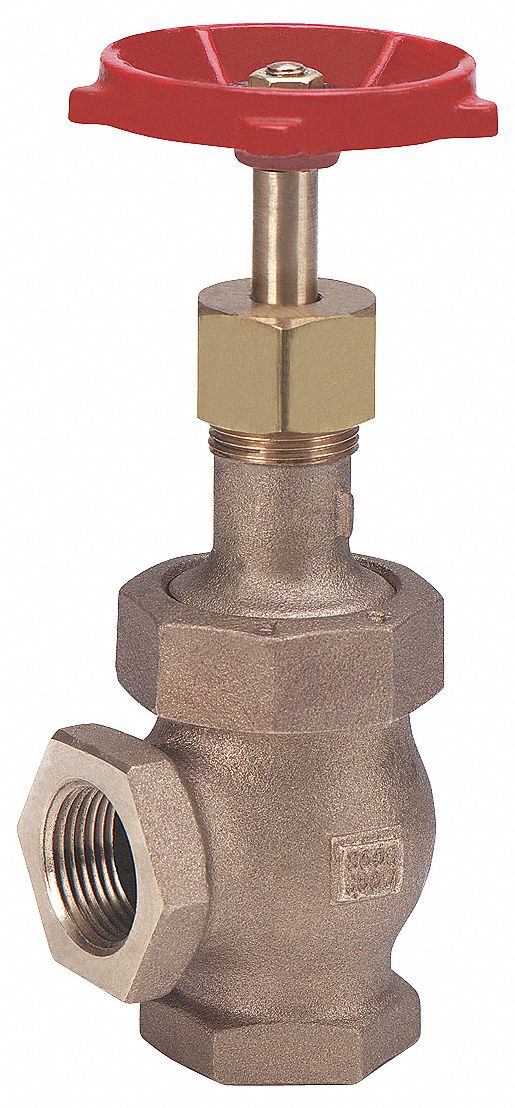

Milwaukee Valve Class 300 Globe Valve, FNPT x FNPT, Bronze, 1/4 in Pipe Size - Valves - 582 1/4"
filler
Availability : Usually Ships in 40 Business Days
Suitable for throttling service. Features include adjustable packing nuts for extended service life, full NPT thread depths, threaded bonnet, and malleable iron handwheels. Dezincification resistant.
| Item - Globe Valves | Globe Valve |
| Pipe Size - Valves | 1/4 in |
| Connection Type - Valves | FNPT x FNPT |
| Shape - Globe Valves | Angle |
| Body Material - Valves | Bronze |
| Media - Valves | Fluid, Steam |
| Valve Stem Design | Rising |
| Valve Handle Design | Hand Wheel |
| Max. Fluid Temp. - Valves | 550 Degrees F |
| Max. Air Pressure | Not Rated |
| Max. Fluid Pressure - Valves | 600 psi |
| Max. Steam Pressure - Valves | 300 psi WSP |
| Inlet to Outlet Length - Valves | 4 in |
| Top of Handle to Inlet Center - Valves | 1 1/16 in |
| Valve Class | Class 300 |
| Stem Material | Bronze |
| Bonnet Style | Union |
| Wedge Material | Bronze |
| Seal Material | Bronze |
| Handle Material | Malleable Iron |
| Standards | MSS-SP-80 |
| Item | Angle Globe Valve |
