Availability : Usually Ships in 5 Business Days
Memory stop can be set to any preset opening point. Ideal for balancing HVAC systems in commercial,and residential plumbing applications.

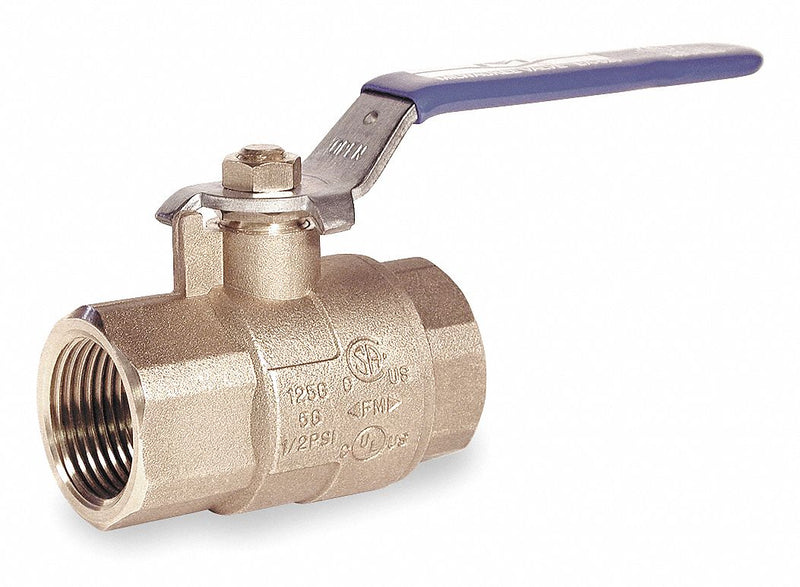

Item | Ball Valve |
Body Material | Brass |
Body Style | Inline |
General Connection Type | Female NPT |
Valve Structure | 2-Piece |
Pipe Size | 1/4 in |
Connection Type | FNPT x FNPT |
Port | Full |
Max. Pressure | 600 psi CWP |
Max. Steam Pressure | 150 psi WSP |
Temp. Range | 0 Degrees to 350 Degrees F |
Ball Material | Chrome Plated Brass |
Seat Material | PTFE |
Handle Type | Lever |
Handle Material | Zinc Plated Steel |
Stem Material | CPVC |
Body Seal Material | PTFE |
Ball Valve Product Group | Manual |
Valve Basic Body Material | Brass |
Standards | CSA, FM, UL |
Overall Length | 1.84 in |
