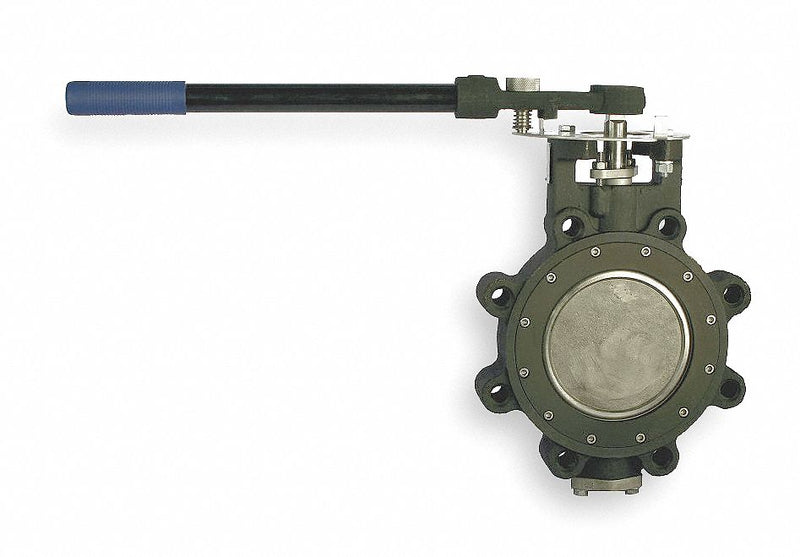

Milwaukee Valve Lug-Style Butterfly Valve, Carbon Steel, 285 psi, 6 in Pipe Size - HP1LCS4212 6"
filler
Availability : Usually Ships in 5 Business Days
Use in throttling and positive shutoff applications, with hot water, cold water, and steam. A redundant seal prevents seat from being drawn into the flow stream, especially under high-velocity conditions. Bidirectional, with double dead-end service. Mounts in any position. Lever handle and stainless steel spring.
| Item | Butterfly Valve |
| Style | Lug |
| Body Material | Carbon Steel |
| Max. Water Pressure | 285 psi |
| Max. Steam Pressure | 150 psi |
| Pipe Size | 6 in |
| Temp. Range | -20 to 400 Degrees F |
| Liner Material | RPTFE |
| Disc Material | 316 Stainless Steel |
| Handle Type | Lever |
| Number of Bolt Holes | 8 |
| Bolt Circle Dia. | 9 1/2 in |
| Lug Dia. | 3/4-10 |
| Standards | ANSI B16.34, API 609, MSS SP-68 |
