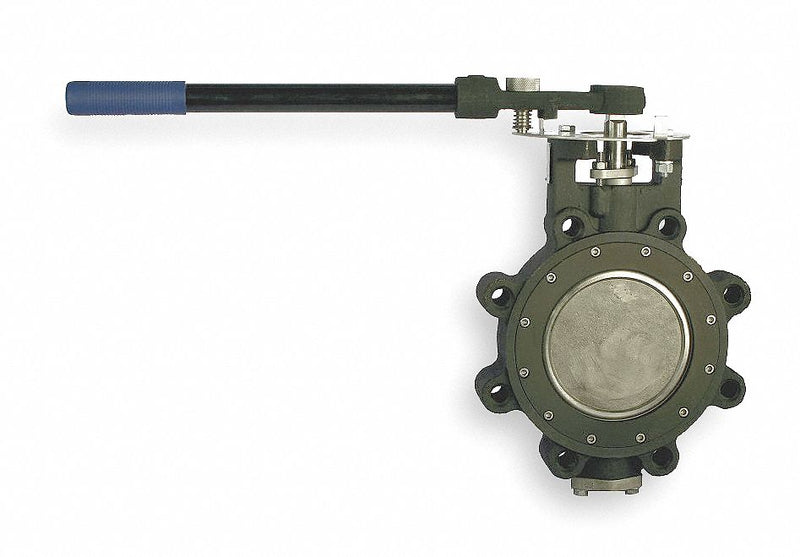

Milwaukee Valve Lug-Style Butterfly Valve, Carbon Steel, 285 psi, 5 in Pipe Size - HP1LCS4212 5"

Milwaukee ValveSKU: C1950077
Weight : 38.18 lb


$2,189.09 $3,530.79

Availability : Usually Ships in 3-5 Business Days

Use in throttling and positive shutoff applications, with hot water, cold water, and steam. A redundant seal prevents seat from being drawn into the flow stream, especially under high-velocity conditions. Bidirectional, with double dead-end service. Mounts in any position. Lever handle and stainless steel spring.

ItemButterfly Valve
Body MaterialCarbon Steel
Max. Water Pressure285 psi
Max. Steam Pressure150 psi
Pipe Size5 in
Temp. Range-20 to 400 Degrees F
Liner MaterialRPTFE
Disc Material316 Stainless Steel
Handle TypeGear Operated
Number of Bolt Holes8
Bolt Circle Dia.8 1/2 in
Lug Dia.3/4-10
StandardsANSI B16.34, API 609, MSS SP-68
