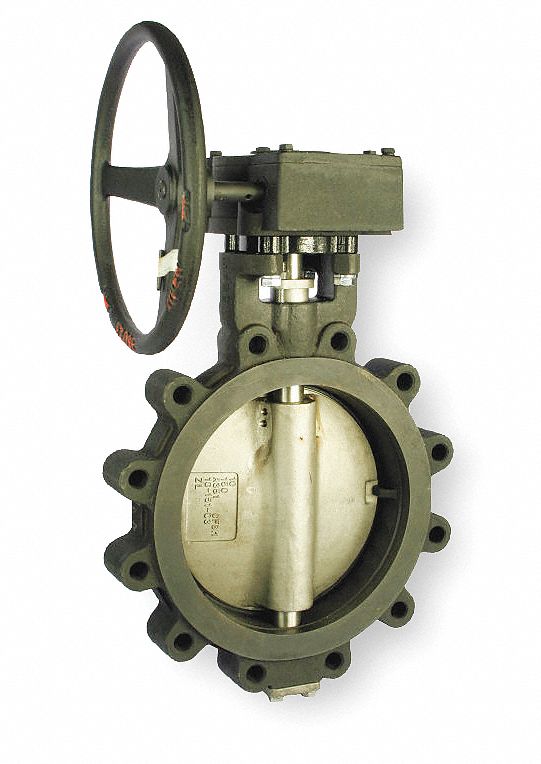

Milwaukee Valve Lug-Style Butterfly Valve, Carbon Steel, 285 psi, 8 in Pipe Size - HP1LCS4213 8"

Milwaukee ValveSKU: C1946103
MPN :
Weight : 41.0 lb

filler

Price:
$2,910.63 $4,694.56

Availability : Usually Ships in 7-10 Business Days

Butterfly Valve; Style: Lug; Body Material: Carbon Steel; Max. Water Pressure: 285 psi; Max. Steam Pressure: 150 psi; Pipe Size: 8 in; Temp. Range: -20 to 400 Degrees F; Liner Material: RPTFE; Disc Material: 316 Stainless Steel; Handle Type: Gear; Number of Bolt Holes: 8; Bolt Circle Dia.: 11 3/4 in; Lug Dia.: 3/4-10; Standards: ANSI B16.34, API 609, MSS SP-68

ItemButterfly Valve
StyleLug
Body MaterialCarbon Steel
Max. Water Pressure285 psi
Max. Steam Pressure150 psi
Pipe Size8 in
Temp. Range-20 to 400 Degrees F
Liner MaterialRPTFE
Disc Material316 Stainless Steel
Handle TypeGear
Number of Bolt Holes8
Bolt Circle Dia.11 3/4 in
Lug Dia.3/4-10
StandardsANSI B16.34, API 609, MSS SP-68
