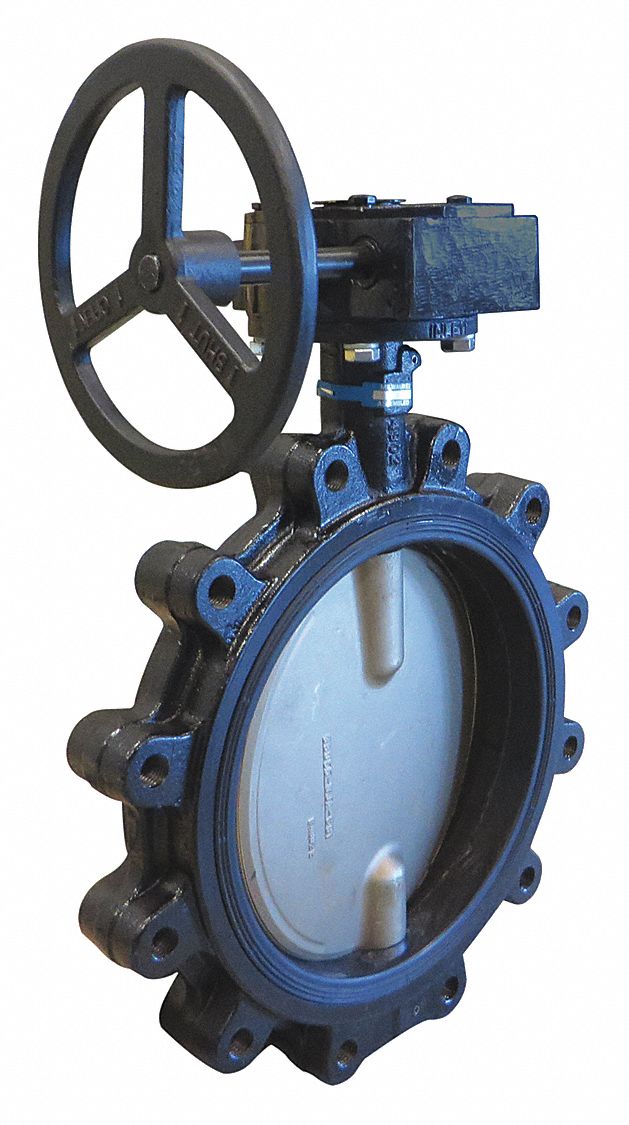

Milwaukee Valve Lug-Style Butterfly Valve, Ductile Iron, 200 psi, 10 in Pipe Size - ML-333E 10
filler
Availability : Usually Ships in 15 Business Days
Designed for commercial mechanical and industrial processes, including hot and cold domestic water, HVAC, condenser and chilled water, and compressed air and vacuum services. High tensile and yield strength with positive shutoff. Bidirectional service to 200 psi max.
| Item | Butterfly Valve |
| Style | Lug |
| Body Material | Ductile Iron |
| Max. Water Pressure | 200 psi |
| Pipe Size | 10 in |
| Temp. Range | -30 to 250 Degrees F |
| Liner Material | EPDM |
| Disc Material | Aluminum/Bronze |
| Handle Type | Gear Operated |
| Number of Bolt Holes | 12 |
| Bolt Circle Dia. | 14 1/4 in |
| Lug Dia. | 7/8-9 |
| Standards | MSS-SP25 And API-609, MSS-SP67 |
