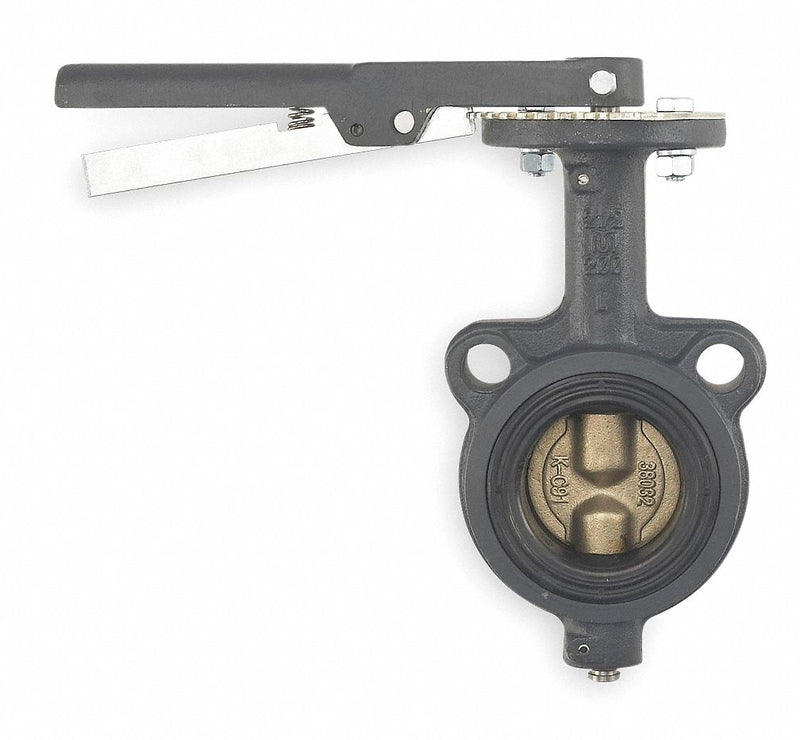

Milwaukee Valve Wafer-Style Butterfly Valve, Cast Iron, 200 psi, 2 1/2 in Pipe Size - MW222B 2 1/2
Availability : Usually Ships in 15 Business Days
Cast- and Ductile-Iron Butterfly Valves, Max. pressure: 200 psi EPDM liner temp. range: -30 to 250F Buna liner temp. range: 10 to 180F Viton liner temp. range: -20 to 300F,Designed for commercial mechanical and industrial processes, including hot and cold domestic water, HVAC, condenser and chilled water, and compressed air and vacuum services.,Meet MSS-SP67, MSS-SP25, and API-609.,Cast-Iron,Heavy-duty, low-torque valves are dead-end service rated at 150 psi; 200 psi for Buna and EPDM lug style.
| Item | Butterfly Valve |
| Style | Wafer |
| Body Material | Cast Iron |
| Max. Water Pressure | 200 psi |
| Pipe Size | 2 1/2 in |
| Temp. Range | 10 to 180 Degrees F |
| Liner Material | Buna |
| Disc Material | Nickel Plated Ductile Iron |
| Handle Type | Lever |
| Number of Bolt Holes | 2 |
| Bolt Circle Dia. | 5 1/2 in |
| Lug Dia. | 5/8-11 |
| Standards | MSS-SP25 And API-609, MSS-SP67 |
