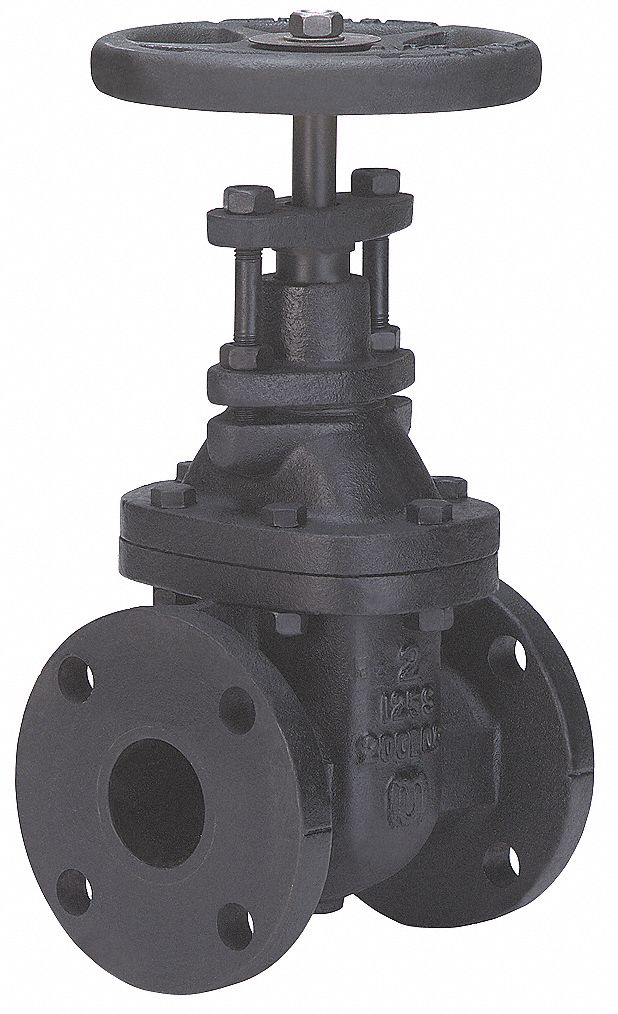

Milwaukee Valve Gate Valve, Valve Class Class 125, Cast Iron, Flange Connection Type - 2882-M 2-1/2"
filler
Availability : Usually Ships in 7-10 Business Days
Milwaukee, Class 125, Rising Stem; Nonrising Stem w/IBBM and Cast-Iron Trim, Max. pressure: 125 psi; 200 psi WOG Max. temp.: 353F Cast-iron bonnet, wedge, and handwheel,Meet MSS SP-70 standards.,Aluminum and Cast- and Ductile-Iron Flanged Gate Valves
| Item | Gate Valve |
| Valve Class | Class 125 |
| Body Material - Valves | Cast Iron |
| Connection Type | Flange |
| Pipe Size - Valves | 2 1/2 in |
| Max. Water Pressure - CWP | 200 psi |
| Max. Working Steam Pressure - WSP | 125 psi |
| Valve Max. Fluid Temp. | 353 Degrees F |
| Valve Stem Type | Non-Rising |
| Top of Handle to Inlet Center | 13 1/4 in |
| Inlet to Outlet Length | 7 1/2 in |
| Stem Material | Brass |
| Bonnet Style | Bolted |
| Wedge Material | Cast Iron |
| Handle Material | Cast Iron |
| Handle Type | Hand Wheel |
| Standards | MSS-SP-70 |
