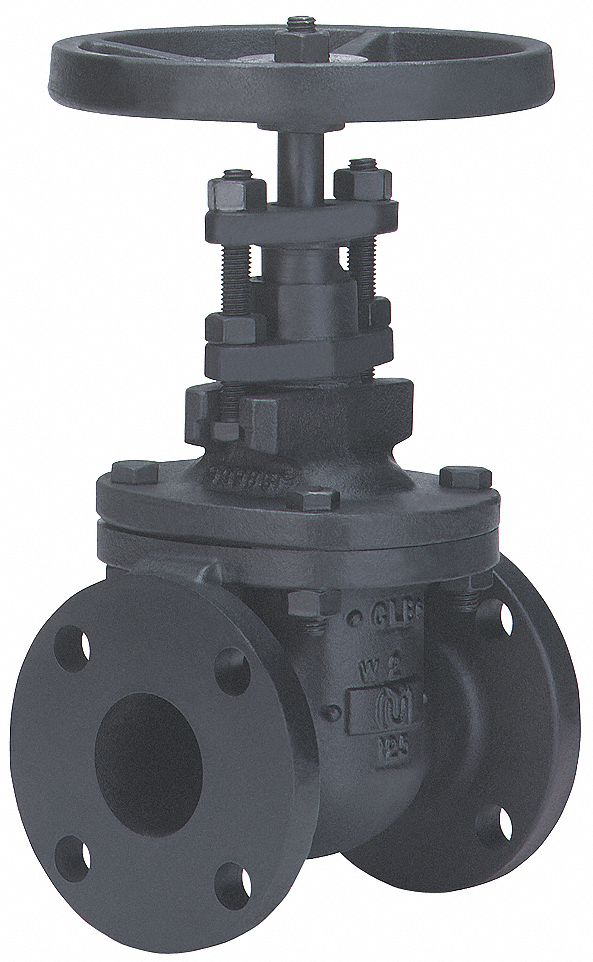

Milwaukee Valve Gate Valve, Valve Class Class 125, Cast Iron, Flange Connection Type - 2882-M26 2 1/2

Milwaukee ValveSKU: C1915498
MPN : 2882-M26 2 1/2
Weight : 48.03 lb
filler

Price:
$578.32 $705.27

Availability : Usually Ships in 1-3 Business Days

Milwaukee, Class 125, Rising Stem; Nonrising Stem w/IBBM and Cast-Iron Trim, Max. pressure: 125 psi; 200 psi WOG Max. temp.: 353F Cast-iron bonnet, wedge, and handwheel,Meet MSS SP-70 standards.,Aluminum and Cast- and Ductile-Iron Flanged Gate Valves

ItemGate Valve
Valve ClassClass 125
Body Material - ValvesCast Iron
Connection TypeFlange
Pipe Size - Valves2 1/2 in
Max. Water Pressure - CWP200 psi
Max. Working Steam Pressure - WSP125 psi
Valve Max. Fluid Temp.353 Degrees F
Valve Stem TypeNon-Rising
Top of Handle to Inlet Center13 1/4 in
Inlet to Outlet Length7 1/2 in
Stem MaterialStainless Steel
Bonnet StyleBolted
Wedge MaterialCast Iron
Handle MaterialCast Iron
Handle TypeHand Wheel
StandardsMSS SP-70
