Milwaukee Valve Check Valve, 2 in, Single, Inline Spring, Bronze, FNPT x FNPT - UP548T 2
filler
Availability : Usually Ships in 20 Business Days

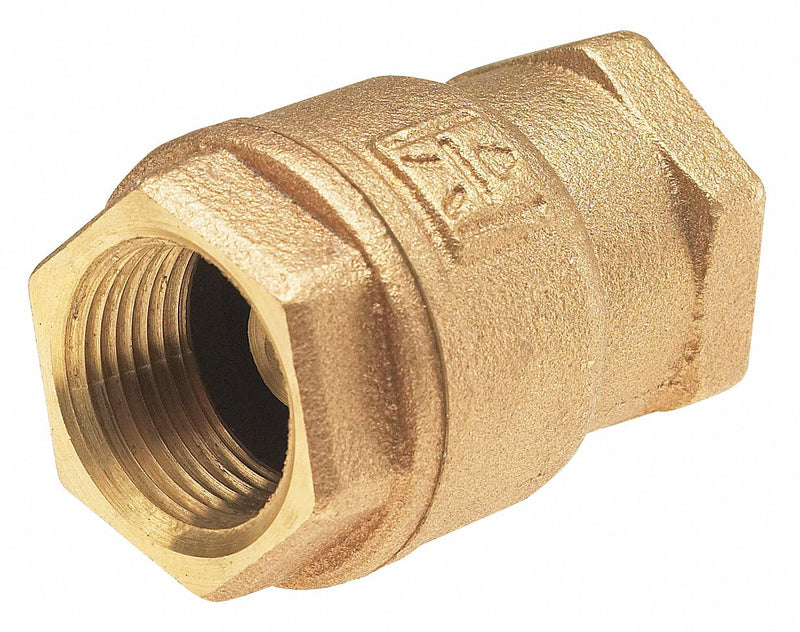

Milwaukee Valve spring-actuated check valve opens and closes by liquid flow and allows flow in only 1 direction to help prevent backflow. Features a silent closing design to help reduce water hammer. A directional arrow cast into valve aids with installation and the valve can be mounted vertically or horizontally. Model is suitable for use in plumbing and heating applications.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Spring |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 2 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.75 to 1 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | Bronze |
| Max. Temp. - Valves | 353 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 250 psi @ 150 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Bronze |
| Spring Material - Check Valves | Bronze |
| Flow - Valves | 54 gpm |
| Full Flow - Valves | No |
| Application - Valves | General Purpose |
| Length | 3 1/8 in |
| Width | 2 in |
| Overall Height | 3 25/32 in |
| Standards | NSF/ANSI 372 |
