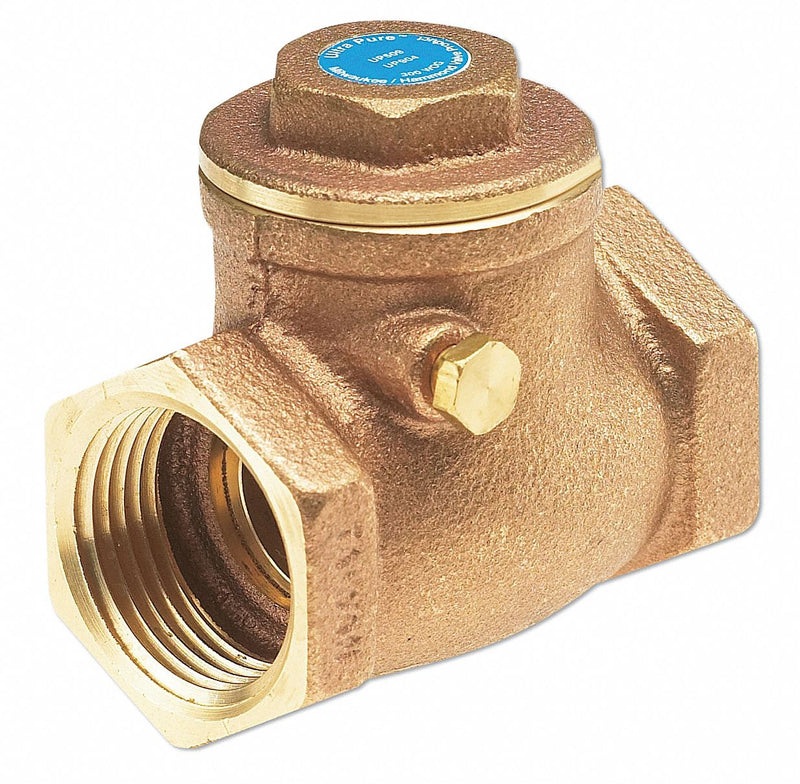

Milwaukee Valve Check Valve, 3/8 in, Single, Inline Swing, Bronze, FNPT x FNPT - UP509 3/8
filler
Availability : Usually Ships in 30 Business Days
Allows flow in one direction and helps prevent fluid backflow this MILWAUKEE VALVE low lead swing check valve is suitable for use in plumbing and heating applications. Model can be mounted vertically or horizontally to ease installation. Certified for use in potable water applications.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 3/8 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.75 to 1 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | Bronze |
| Max. Temp. - Valves | 200 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 300 psi @ 150 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Brass |
| Flow - Valves | 6 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 2 1/8 in |
| Width | 3/8 in |
| Overall Height | 1 7/16 in |
| Cap to Inlet Center | 1 7/16 in |
| Standards | NSF/ANSI 372 |
