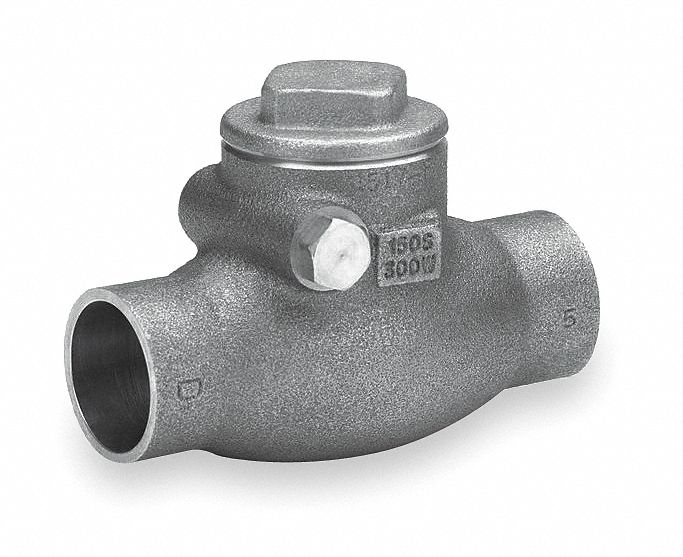

Milwaukee Valve Check Valve, 2 1/2 in, Single, Inline Swing, Bronze, Sweat x Sweat - 1509 2-1/2"
filler
Availability : Usually Ships in 40 Business Days
Allows flow in one direction and helps prevent fluid backflow this MILWAUKEE VALVE swing check valve is suitable for use in plumbing and heating applications. Model features bronze construction for corrosion resistance.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 2 1/2 in |
| Connection Type - Check Valves | Sweat x Sweat |
| Cracking Pressure - Check Valves | 0.5 to 0.75 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | Bronze |
| Max. Temp. - Valves | 406 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 200 psi @ 150 Degrees F |
| Max. Steam Pressure - Valves | 125 psi WSP |
| Seat Material - Check Valves | Bronze |
| Flow - Valves | 192 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 7 3/8 in |
| Overall Height | 3 5/8 in |
| Cap to Inlet Center | 3 5/8 in |
| Standards | MSS SP-80 |
