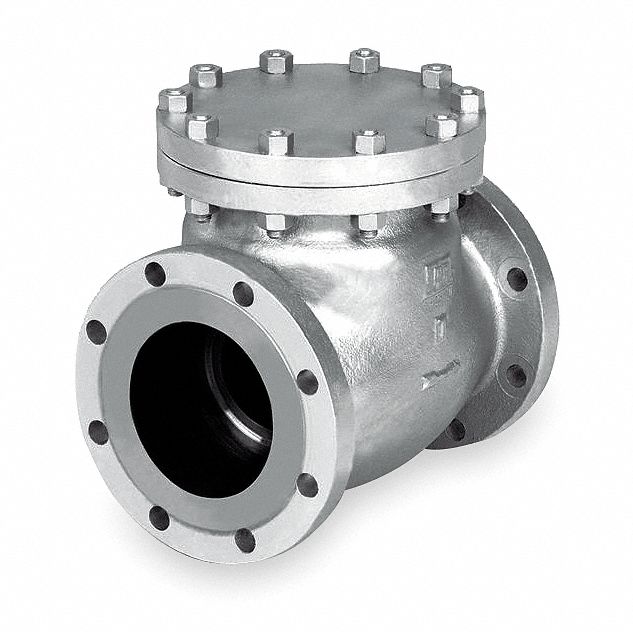

Milwaukee Valve Check Valve, 6 in, Single, Inline Swing, Cast Steel, Flange x Flange - 1570 CB2 6"
filler
Availability : Usually Ships in 15 Business Days
Cast-Steel,Cobalt/chrome seats.,Meet API 600 and ASME B 16.34.,Flanged-End Swing Check Valves,Allow flow in only 1 direction to prevent backflow; Mount horizontally, except cast-iron models mount vertically or horizontally.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Cast Steel |
| Pipe or Tube Size - Check Valves | 6 in |
| Connection Type - Check Valves | Flange x Flange |
| Cracking Pressure - Check Valves | 2 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | Chrome, Cobalt |
| Max. Temp. - Valves | 1,000 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 285 psi @ 100 Degrees F |
| Max. Steam Pressure - Valves | 200 psi WSP |
| Seat Material - Check Valves | Chrome, Cobalt |
| Flow - Valves | 1,440 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 14 in |
| Overall Height | 12 7/16 in |
| Cap to Inlet Center | 12 7/16 in |
| Standards | API 600 ASME B 16.34 |
