Milwaukee Valve Check Valve, 1 1/4 in, Single, Y Swing, Bronze, FNPT x FNPT - 515Y 1 1/4"
filler
Availability : Usually Ships in 10 Business Days

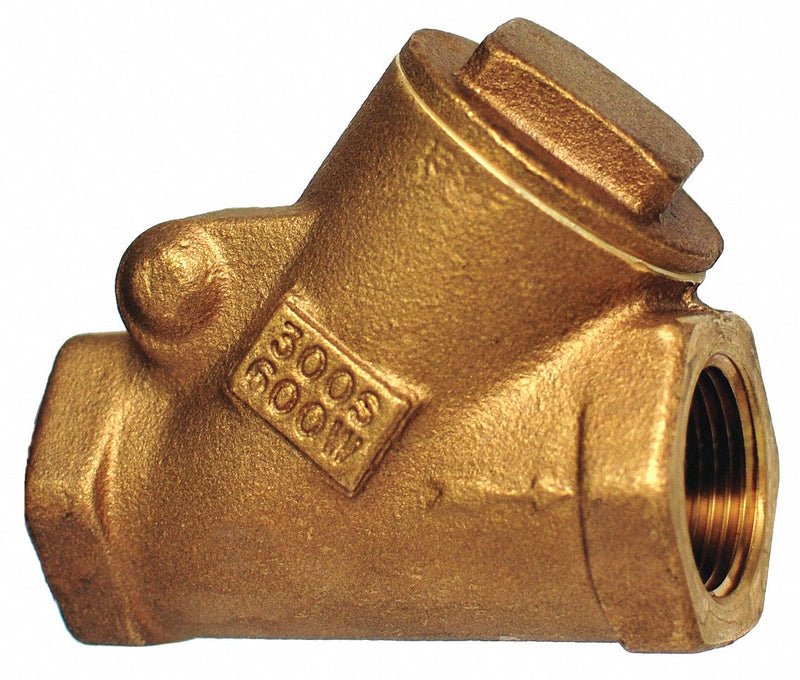

Featuring a Y-pattern design that eases maintenance, this MILWAUKEE VALVE swing Y check valve comes with a bronze body and disc and metal-to-metal seating. Model can be mounted vertically or horizontal for easy installation. Valve is suitable for use in plumbing and heating applications.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Y Swing |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 1 1/4 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.5 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Bronze |
| Max. Temp. - Valves | 425 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 300 psi @ 150 Degrees F |
| Max. Steam Pressure - Valves | 150 psi WSP |
| Seat Material - Check Valves | Bronze |
| Flow - Valves | 54 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 4 3/8 in |
| Width | 1 1/2 in |
| Overall Height | 3 3/4 in |
| Cap to Inlet Center | 3 in |
| Standards | MSS SP-80. Type 3 |
