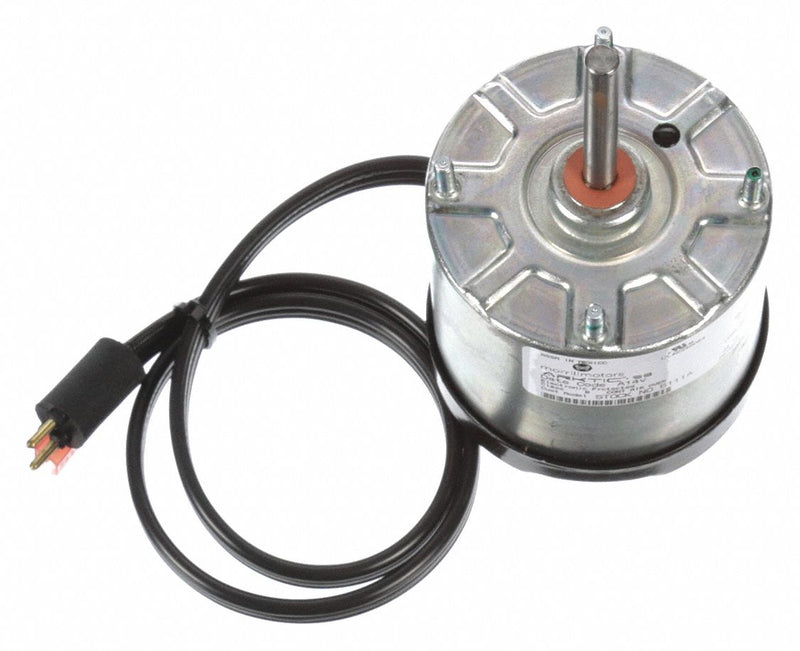

ECM direct-drive blower motor features higher efficiency than standard motors for a greater energy savings. Suitable for evaporator fan motors used in beverage merchandisers, freezers, ice machines, and walk-in coolers.,Totally-enclosed, air over enclosure,Includes mounting bracket
| Item | Unit Bearing Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Design | ECM |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/15 |
| Nameplate RPM | 1550/800 |
| Frame | 59 |
| Voltage | 115 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 1.1 |
| Output Watts | 50 W |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CWLE |
| Length Less Shaft | 3 3/16 in |
| Overall Length | 6 27/64 in |
| Motor Shaft Design | Flat |
| Shaft Dia. | 5/16 in |
| Shaft Length | 2 5/8 in |
| Body Dia. | 3 19/64 in |
| Motor Mounting Position | Horizontal or Vertical Shaft Up |
| Bolt Circle Dia. | 2 27/32 in |
| Plug Type | Round 2 Pin |
| Mounting Stud Length | 29/64 in |
| Standards | UL |
| Voltage Compatibility | 115, 120 |
