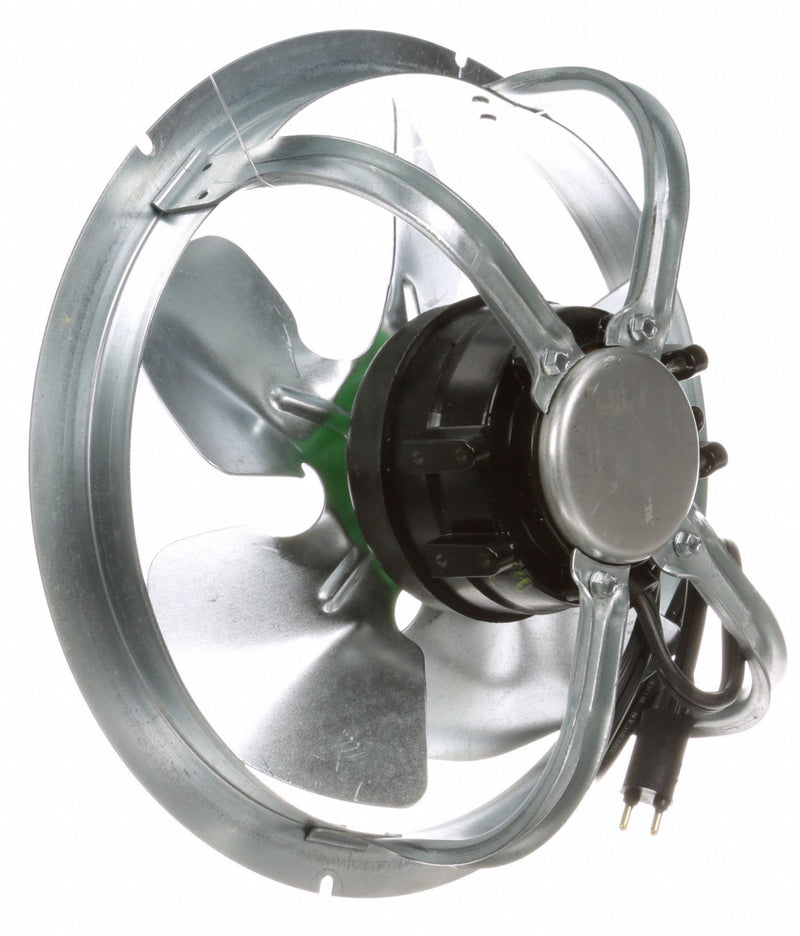

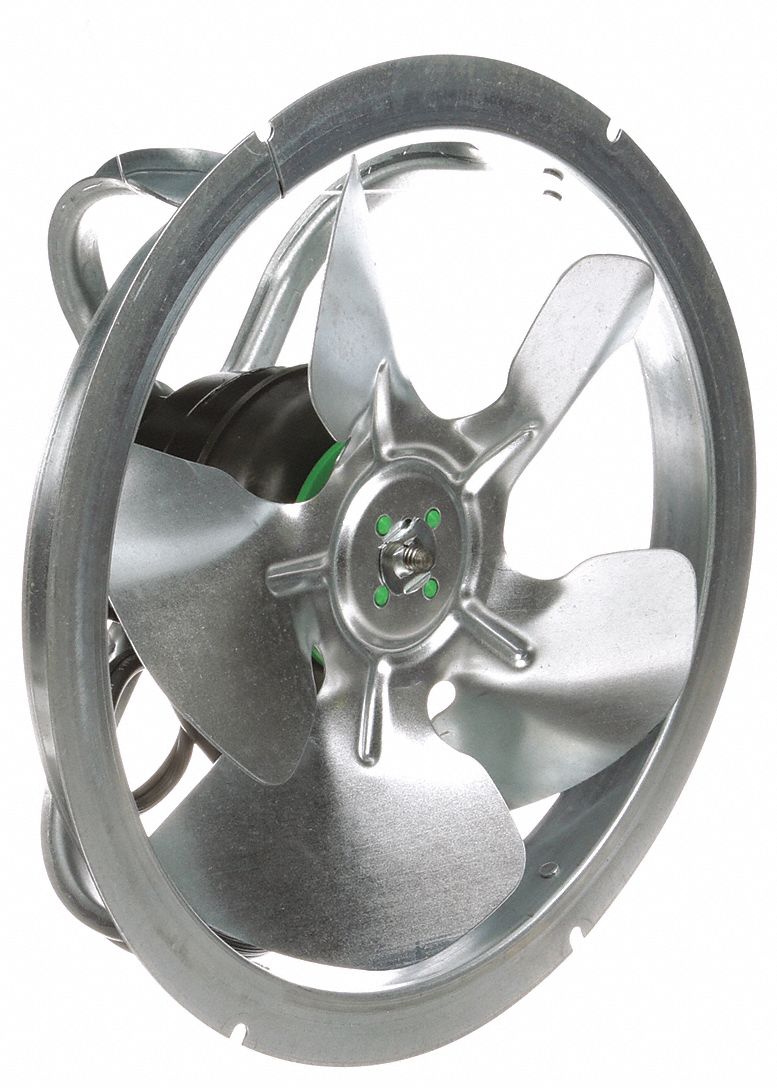

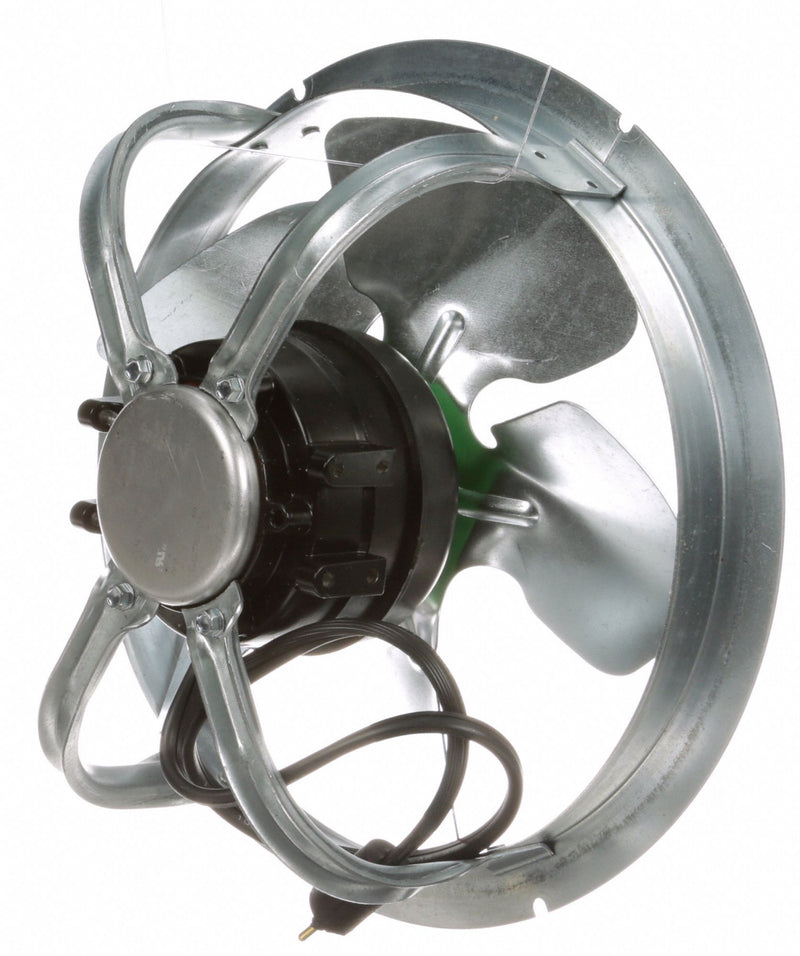

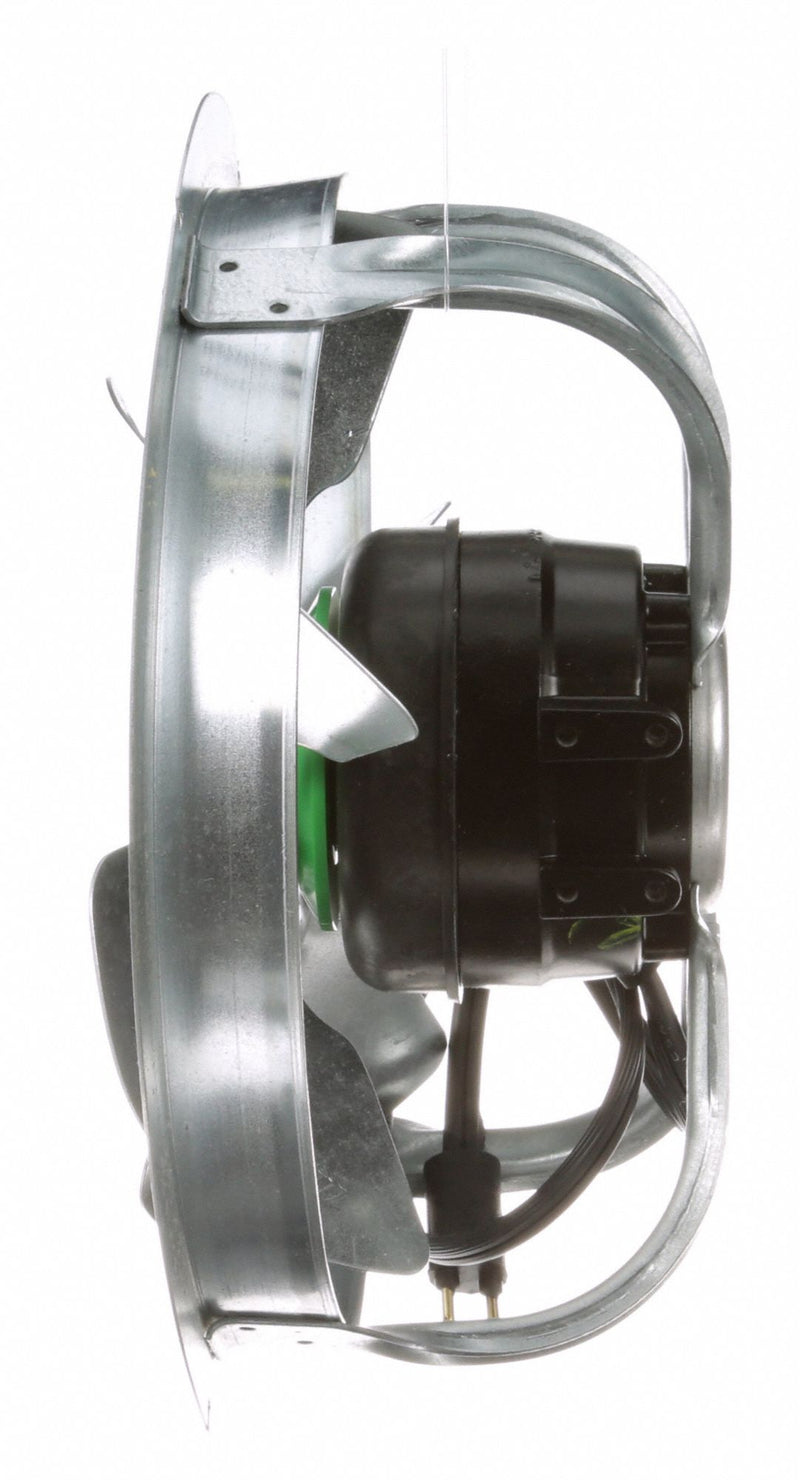

Aluminum-frame motor kit includes fan blades, mounting bracket and moisture shield. Assembly is suitable for use in condenser and evaporator fan, walk-in cooler/freezer, ice machine, beverage merchandiser, and vending machine applications. Threaded 14-20 shaft.
| Item | ECM Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Design | ECM |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/50 |
| Output Watts | 16 W |
| Nameplate RPM | 1450 |
| Frame | Non-Standard |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 0.4 |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| No. of Speeds | 1 |
| Motor Shaft Rotation | CWLE |
| Motor Bearings | Unit |
| Motor Service Factor | 1 |
| Ambient Temperature | -40 to 55 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Cast Aluminum |
| Overall Length | 4 3/16 in |
| Length Less Shaft | 3 1/4 in |
| Motor Shaft Design | Threaded |
| Shaft Dia. | 1/4 in |
| Shaft Length | 5/8 in |
| Body Dia. | 3 5/16 in |
| Mounting Pattern | 9-13/16 in |
| Motor Mounting Position | All Angle |
| Bolt Circle Dia. | 9 13/16 in |
| Application | Condenser Fans, Freezers, Walk In Coolers |
| Duty | Continuous |
| Capacitor Required | No |
| Plug Type | 2 Prong Lyall M-2-24 |
| Standards | UL Recognized (E258064), cUR |
| Includes | Fan Blade, Moisture Shield, Mounting Bracket |
| RPM Range | 1401-1500 |
| Voltage Compatibility | Voltage Compatibility |
