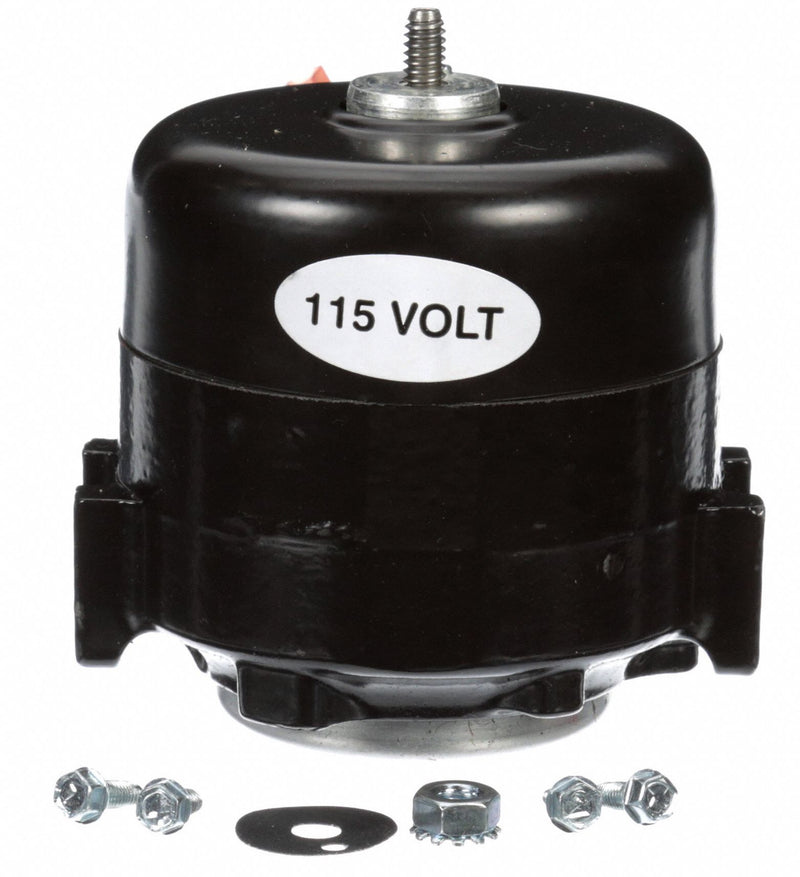

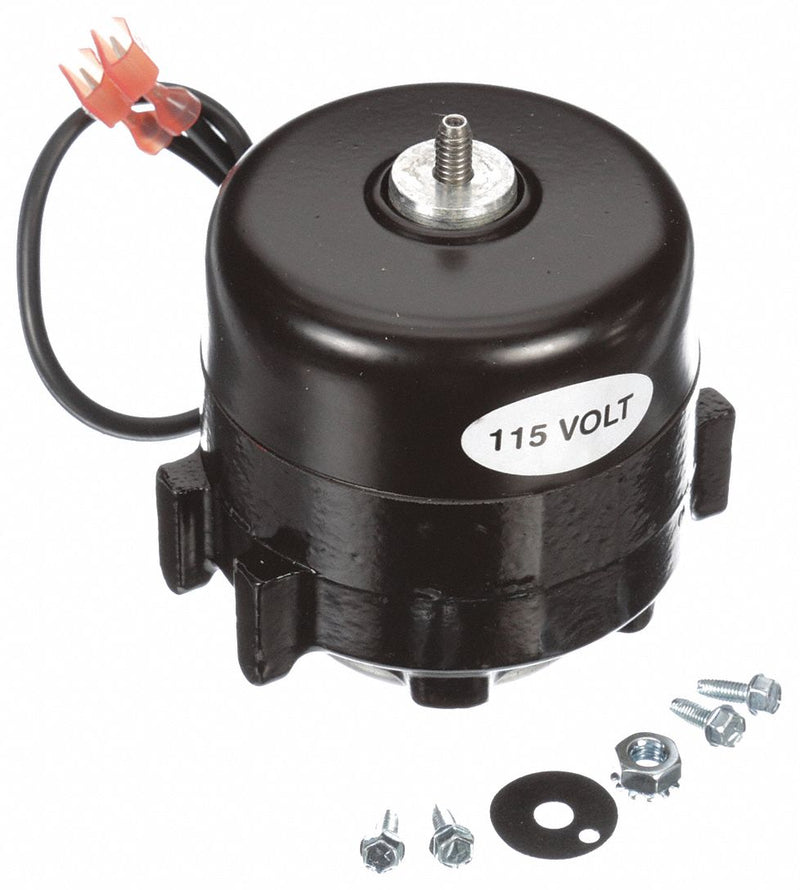

Aluminum-frame motor is suitable for use in condenser and evaporator fan, walk-in cooler/freezer, ice machine, beverage merchandiser, and vending machine applications. Threaded 14-20 shaft.
Item | ECM Unit Bearing Motor |
Motor Application | HVAC/R |
Motor Sub Application | Refrigerator/Freezer |
Motor Design | ECM |
Motor Enclosure Design | Totally Enclosed Air-Over |
HP | 1/20 |
Output Watts | 38 W |
Nameplate RPM | 1550 |
Frame | Non-Standard |
Voltage | 115 |
Hz | 60 |
Phase | 1 |
Full Load Amps | 0.9 |
Motor Mounting Type | Rear/Foot |
Motor Thermal Protection | Auto |
Ins. Class | B |
No. of Speeds | 1 |
Motor Shaft Rotation | CCWLE |
Motor Bearings | Unit |
Motor Service Factor | 1 |
Ambient Temperature | -40 to 55 Degrees C |
Max. Ambient Temp. | 55 Degrees C |
Motor Frame Material | Cast Aluminum |
Overall Length | 4 1/16 in |
Length Less Shaft | 3 13/16 in |
Motor Shaft Design | Threaded |
Shaft Dia. | 1/4 in |
Shaft Length | 1/4 in |
Body Dia. | 3 5/16 in |
Mounting Pattern | (3) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear |
Motor Mounting Position | All Angle |
Application | Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers |
Duty | Continuous |
Plug Type | 2-prong Lyall M-2-24 |
Standards | UL Recognized (E258064) |
RPM Range | 1501-1600 |
