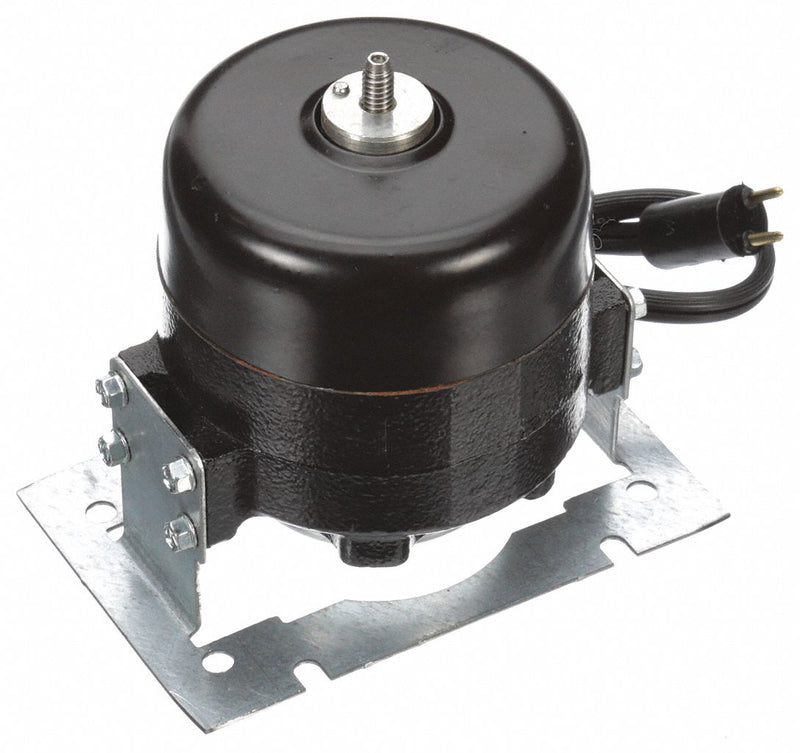

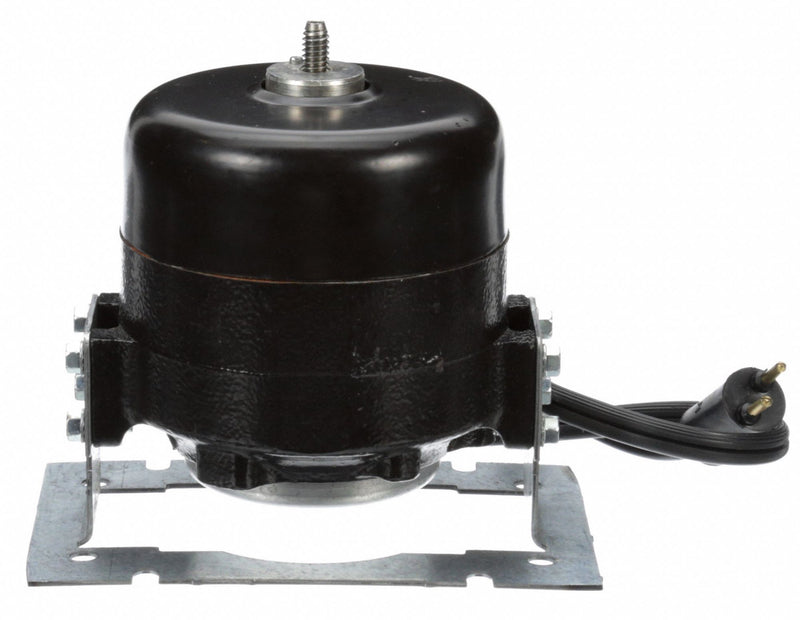

Aluminum-frame motor is suitable for use in condenser and evaporator fan, walk-in cooler/freezer, ice machine, beverage merchandiser, and vending machine applications. Threaded 14-20 shaft.
| Item | ECM Unit Bearing Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Design | ECM |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/20 |
| Output Watts | 38 W |
| Nameplate RPM | 1550 |
| Frame | Non-Standard |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 0.9 |
| Motor Mounting Type | Rear/Foot |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| No. of Speeds | 1 |
| Motor Shaft Rotation | CCWLE |
| Motor Bearings | Unit |
| Motor Service Factor | 1 |
| Ambient Temperature | -40 to 55 Degrees C |
| Max. Ambient Temp. | 55 Degrees C |
| Motor Frame Material | Cast Aluminum |
| Overall Length | 4 1/16 in |
| Length Less Shaft | 3 13/16 in |
| Motor Shaft Design | Threaded |
| Shaft Dia. | 1/4 in |
| Shaft Length | 1/4 in |
| Body Dia. | 3 5/16 in |
| Mounting Pattern | (4) 0.147 in Dia Drilled Holes 5/8 x 1-1/8 in on Each Foot, (5) 0.15 in Dia Cored Holes on 2.813 in Dia Bolt Circle on Rear |
| Motor Mounting Position | All Angle |
| Application | Beverage Merchandisers and Vending Machines, Condenser Fans, Ice Machines, Walk-in Coolers and Freezers |
| Duty | Continuous |
| Plug Type | 2-prong Lyall M-2-24 |
| Standards | Standards |
