Availability : Usually Ships in 3-5 Business Days

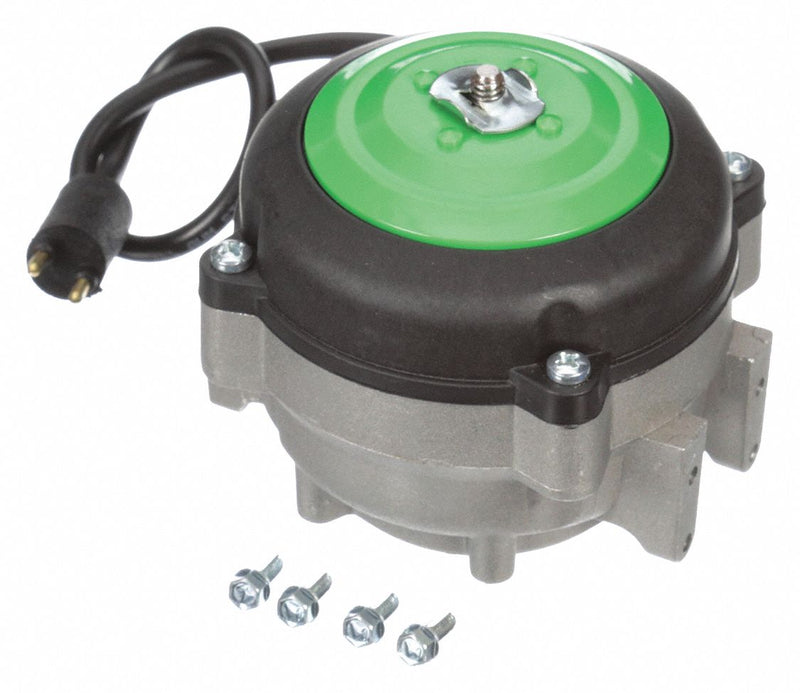

High-efficiency RoHS-compliant motor can be used in commercial refrigeration evaporator fan applications. Electronic thermal protect helps protect the motor against damage caused by overheating. Straight connector.
Item | Unit Bearing Motor |
Motor Application | HVAC/R |
Motor Sub Application | Refrigerator/Freezer |
Motor Design | ECM |
Motor Enclosure Design | Totally Enclosed Air-Over |
Nameplate RPM | 1550 |
Frame | Non-Standard |
Voltage | 115 |
Hz | 60 |
Phase | 1 |
Full Load Amps | 0.4 |
Output Watts | 16 to 4 |
Motor Mounting Type | Rear/Foot |
Motor Thermal Protection | Auto |
Ins. Class | B |
Motor Service Factor | 1 |
Motor Bearings | Unit |
Motor Frame Material | Cast Aluminum |
Max. Ambient Temp. | 55 Degrees C |
Motor Shaft Rotation | CWLE |
Length Less Shaft | 3 1/4 in |
Overall Length | 3 5/8 in |
Motor Shaft Design | Threaded |
Shaft Dia. | 1/4 in |
Shaft Length | 3/8 in |
Body Dia. | 3 1/2 in |
Motor Mounting Position | All Angle |
Bolt Circle Dia. | 2 3/4 in |
Plug Type | Round 2 Pin |
Includes | (4) #8-36 x 7/16 in THD FM, Straight 2-Pin Connector |
Standards | UL Recognized; ATEX certified to EN60079 |
Voltage Compatibility | 115, 120 |
