Mueller Steam Specialty 2" Duplex Strainer, Flanged, .062" Mesh, 11" Length, Cast Iron - 2 791F-AH CI Duplex Strainer Flgd

WattsSKU: C1945009
MPN : 2 791F-AH CI Duplex Strainer Flgd
Weight : 135.0 lb
filler

Price:
$5,223.27 $6,369.84

Availability : Usually Ships in 15-20 Business Days

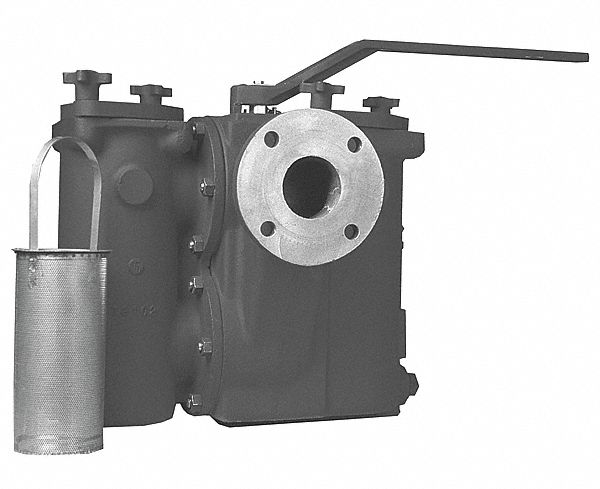

Typically used in cooling water, compressor, condenser, chemical processing, and pump station service applications, this metal duplex basket strainer diverts flow from one basket to another for easy in-line cleaning or changeout; no need to disassemble or remove the strainer. Two 316 stainless steel perforated baskets are included. Replacement baskets are available; call 1-800-GRAINGER (472-4643).

ItemDuplex Strainer
Pipe Size2"
Connection TypeFlanged
Housing MaterialCast Iron
Max. Pressure200 psi @ 150 Degrees F
Length11"
Height11"
Width11"
Screen Material304 Stainless Steel
Mesh.062"
Gasket MaterialBuna-N
Max. Fluid Temp.150 Degrees F
Blow-off Port1-1/2"
Class125
