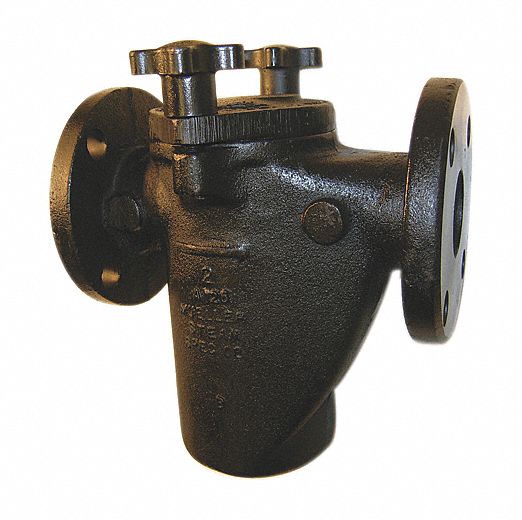

Featuring quick-opening, nonyoke knobs that help reduce service time in applications needing frequent maintenance and large-capacity straining, this MUELLER STEAM SPECIALTY basket strainer is designed for large-capacity straining in water cooling, seawater, and hot water applications. The cover and basket O-ring seals eliminate particle bypass and reduce the need for gasket replacement.
| Item | Basket Strainer |
| Pipe Size | 6 in |
| Connection Type | Flanged |
| Max. Fluid Temp. | 150 Degrees F |
| Length | 20 in |
| Height | 31 in |
| Mesh | 31/500 in |
| Screen Material | 304 Stainless Steel |
| Housing Material | Cast Iron |
| Max. Pressure | 200 psi @ 150 Degrees F |
| Gasket Material | Buna-N |
| Screen Size | .062 perf |
