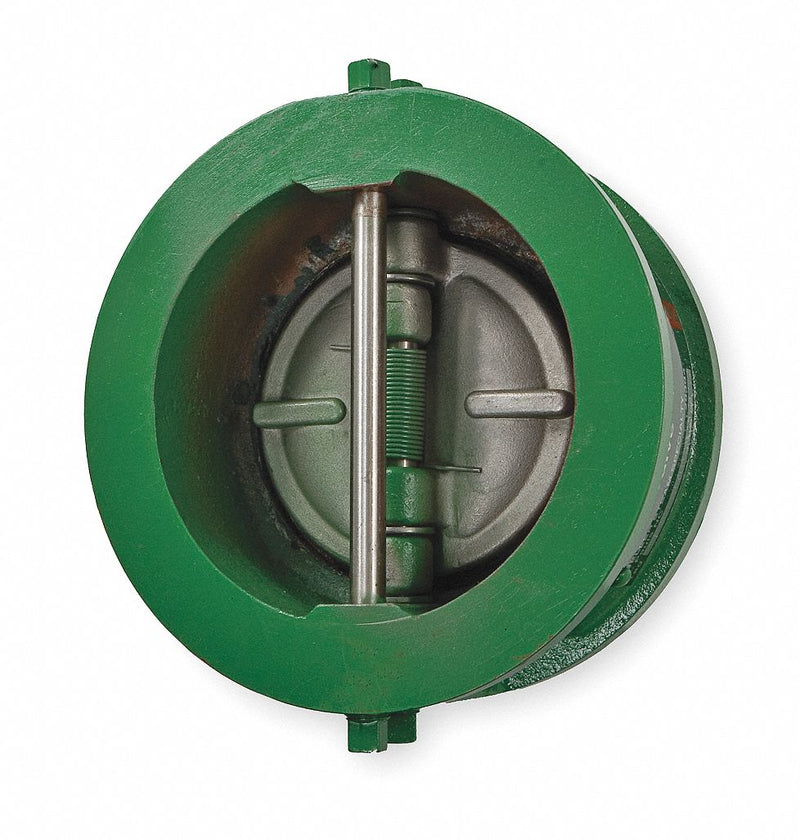

Sure Check, Max. temp.: 100F,Class 125 valves prevent surge and water hammer due to flow reversal; specially designed springs close discs before flow reversal can occur. With stainless steel springs and Buna N seal. Mount vertically or horizontally. Designed to fit ANSI flanges. Suitable for liquid and gas service applications.,Meet ANSI standards; FM Approved.,Heavy-Duty Check Valves, Max. pressure: 200 psi
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Wafer |
| Body Material - Valves | Cast Iron |
| Pipe or Tube Size - Check Valves | 3 in |
| Connection Type - Check Valves | Flanged Wafer x Flanged Wafer |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Buna-N |
| Max. Temp. - Valves | 100 Degrees F |
| Max. Water Pressure - Valves | 200 psi @ 150 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Buna-N |
| Spring Material - Check Valves | 316 Stainless Steel |
| Application - Valves | Process Piping |
| Length | 5 3/8 in |
| Width | 2 1/4 in |
| Overall Height | 5 3/8 in |
| Standards | ANSI, API, FM, UL |
