Availability : Usually Ships in 15 Business Days

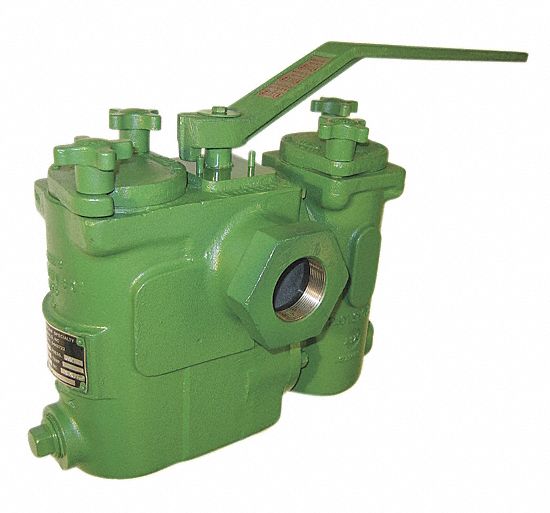

Typically used in cooling water, compressor, condenser, chemical processing, and pump station service applications, this metal duplex basket strainer diverts flow from one basket to another for easy in-line cleaning or changeout; no need to disassemble or remove the strainer. Two 316 stainless steel perforated baskets are included. Replacement baskets are available; call 1-800-GRAINGER (472-4643).
Item | Duplex Strainer |
Pipe Size | 1-1/4" |
Connection Type | Threaded |
Housing Material | Cast Iron |
Max. Pressure | 175 psi @ 150 Degrees F |
Length | 10" |
Height | 10" |
Width | 10" |
Screen Area | 0.062 sq. in. |
Screen Material | 304 Stainless Steel |
Mesh | .062" |
Gasket Material | Buna-N |
Max. Fluid Temp. | 150 Degrees F |
Blow-off Port | 1-1/4" |
Class | 125 |
