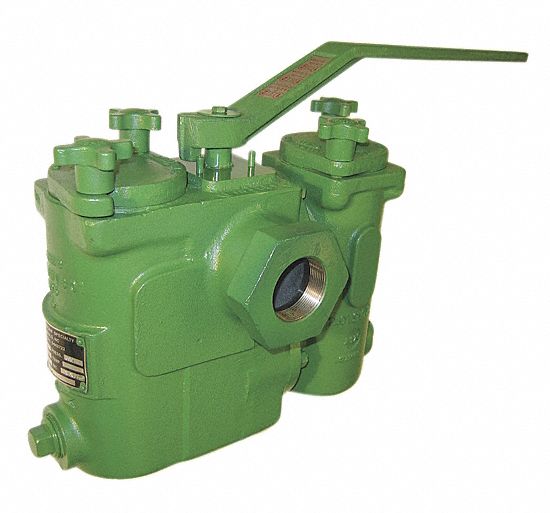

Mueller Steam Specialty 2 in Duplex Strainer, Threaded, 31/500 in Mesh, 11 in Length, Cast Iron - 2 791-S-AH CI Duplex Strainer THD
Mueller Steam Specialty 2 in Duplex Strainer, Threaded, 31/500 in Mesh, 11 in Length, Cast Iron - 2 791-S-AH CI Duplex Strainer THD

Mueller Steam Specialty 2 in Duplex Strainer, Threaded, 31/500 in Mesh, 11 in Length, Cast Iron - 2 791-S-AH CI Duplex Strainer THD

WattsSKU: C1945058
MPN : 2 791-S-AH CI Duplex Strainer THD
Weight : 131.0 lb

filler
Price:
$5,337.16 $8,608.32

Availability : Usually Ships in 1-3 Business Days

Typically used in cooling water, compressor, condenser, chemical processing, and pump station service applications, this metal duplex basket strainer diverts flow from one basket to another for easy in-line cleaning or changeout; no need to disassemble or remove the strainer. Two 316 stainless steel perforated baskets are included. Replacement baskets are available; call 1-800-GRAINGER (472-4643).

ItemDuplex Strainer
Pipe Size2 in
Connection TypeThreaded
Housing MaterialCast Iron
Max. Pressure175 psi @ 150 Degrees F
Length11 in
Height15 in
Width11 in
Screen Area0.06 sq in
Screen Material304 Stainless Steel
Mesh31/500 in
Gasket MaterialBuna-N
Max. Fluid Temp.150 Degrees F
Blow-off Port1 1/4 in
Class125
