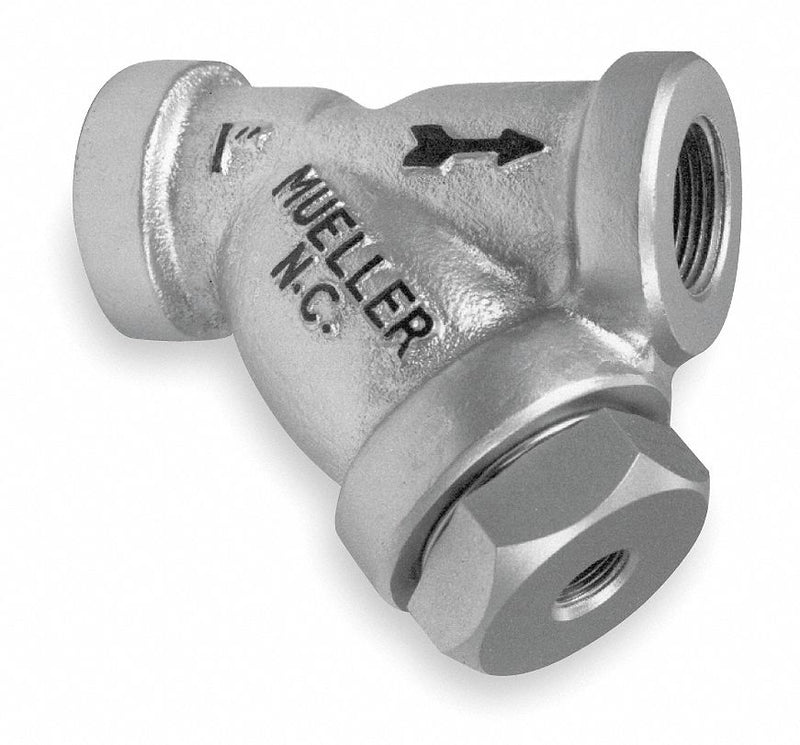

Mueller Steam Specialty 1/2 in Y Strainer, FNPT x FNPT, 1/16 in Mesh, 2 15/16 in Length, Cast Carbon Steel - 1/2 581 CS screwed end

WattsSKU: C1945010
MPN : 1/2 581 CS screwed end
Weight : 1.75 lb
filler

Price:
$86.78 $105.83

Availability : Usually Ships in 7-10 Business Days

Y Strainer; Pipe Size: 1/2 in; Connection Type: FNPT x FNPT; Housing Material: Cast Carbon Steel; Max. Pressure: 1010 psi @ 750 Degrees F WSP, 1480 psi @ 100 Degrees F WOG; Length: 2 15/16 in; Screen Area: 0.06 sq in; Screen Material: 304 Stainless Steel; Mesh: 1/16 in; Gasket Material: Spiral Wound Graphite Filled; Max. Fluid Temp.: 100 Degrees F; Blow-off Port: 1/4 in; Class: 600

ItemY Strainer
Pipe Size1/2 in
Connection TypeFNPT x FNPT
Housing MaterialCast Carbon Steel
Max. Pressure1010 psi @ 750 Degrees F WSP, 1480 psi @ 100 Degrees F WOG
Length2 15/16 in
Screen Area0.06 sq in
Screen Material304 Stainless Steel
Mesh1/16 in
Gasket MaterialSpiral Wound Graphite Filled
Max. Fluid Temp.100 Degrees F
Blow-off Port1/4 in
Class600
