Mueller Steam Specialty 4 in Y Strainer, Flanged, 31/500 in Mesh, 15 5/8 in Length, Cast Iron - 4 752 iron body flanged
Mueller Steam Specialty 4 in Y Strainer, Flanged, 31/500 in Mesh, 15 5/8 in Length, Cast Iron - 4 752 iron body flanged

Mueller Steam Specialty 4 in Y Strainer, Flanged, 31/500 in Mesh, 15 5/8 in Length, Cast Iron - 4 752 iron body flanged

WattsSKU: C1945031
MPN : 4 752 iron body flanged
Weight : 103.0 lb

filler
Price:
$1,007.94 $1,625.71

Availability : Usually Ships in 7-10 Business Days

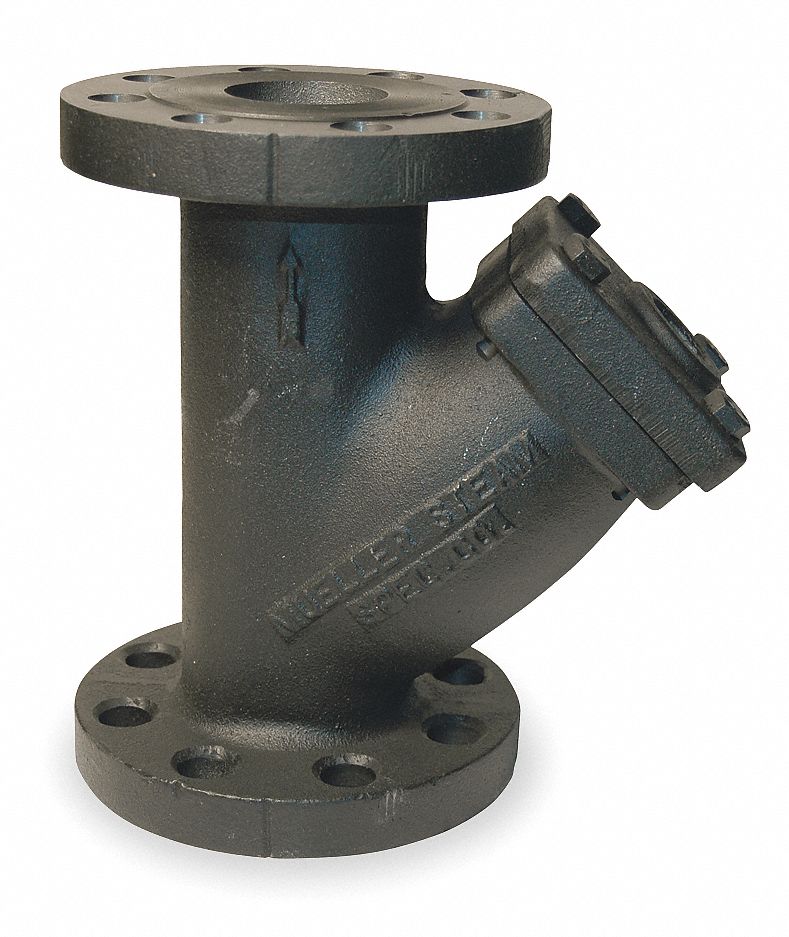

This MUELLER STEAM SPECIALTY Y strainer provides protection for meters, pumps, and valves. Model has a gasketed cover and a self-cleaning feature that allows you to easily clean out the strainer. Unit has an open area ratio thats greater than the pipe size to help ensure low pressure drop.

ItemY Strainer
Pipe Size4 in
Connection TypeFlanged
Housing MaterialCast Iron
Max. Pressure250 psi @ 450 Degrees F WSP, 500 psi @ 150 Degrees F WOG
Length15 5/8 in
Screen Area0.06 sq in
Screen Material304 Stainless Steel
Mesh31/500 in
Gasket MaterialCompressed Fiber
Max. Fluid Temp.150 Degrees F
Blow-off Port1 1/2 in
Class250
