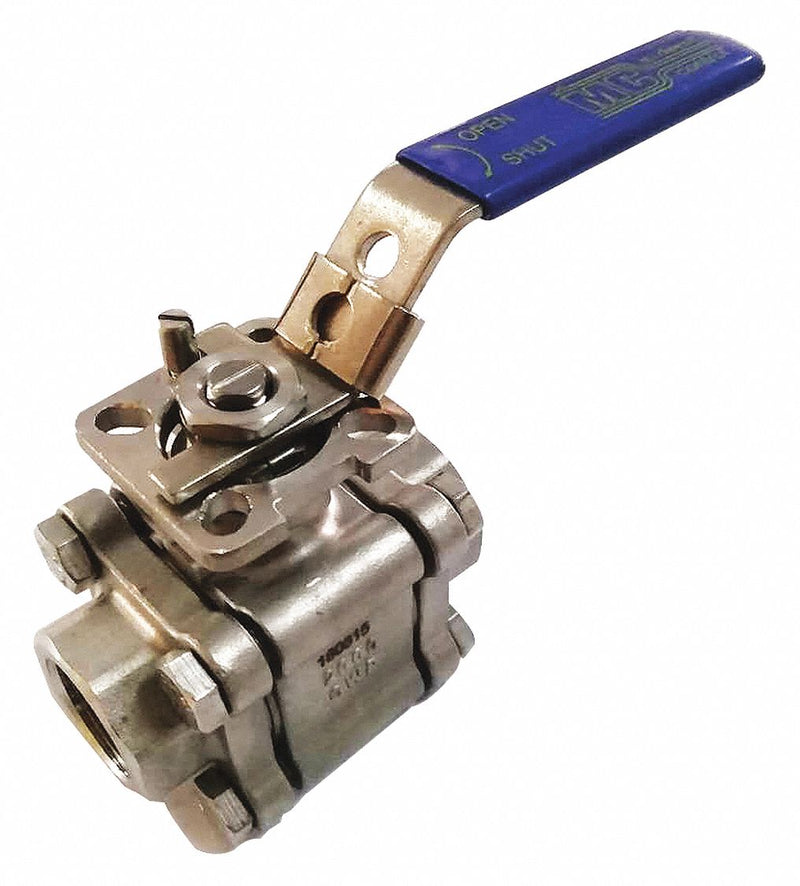

This ball valve features CF8M Stainless Steel construction. CF8M Stainless Steel is similar to 316 Stainless Steel, but is cast rather than wrought. It is slightly magnetic due to its ferrite content.
| Item | Ball Valve |
| Body Material | CF8M Stainless Steel |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 3-Piece |
| Pipe Size | 1 1/2 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 1500 psi CWP |
| Max. Steam Pressure | 250 psi WSP |
| Temp. Range | -20 Degrees to 500 Degrees F |
| Ball Material | 316 Stainless Steel |
| Seat Material | PTFE |
| Stem Type | Positive Retained |
| Handle Type | Locking Lever |
| Handle Material | 304 Stainless Steel |
| Stem Material | 630 Stainless Steel |
| Body Seal Material | Graphite |
| Features | ISO Mounting Pad |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
| Standards | ASME B16.34, CF8M |
| Overall Length | 4.7 in |
