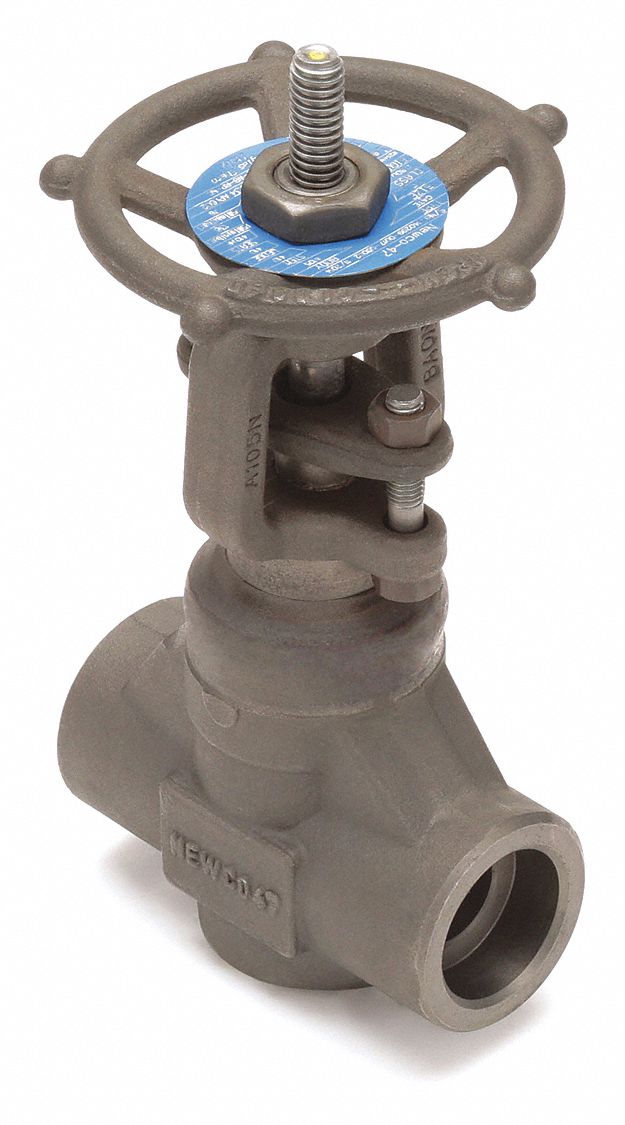

Forged Steel Gate Valves, Rated for: 1974 psi Max. temp.: 800F,External valve stem threads prevent contamination from flow media. Carbon steel construction. Suitable for gas, oil, steam, water, and general service.,Meet ANSI Class 600 and ASME B16.10, B16.34 standards.
| Item | Gate Valve |
| Valve Class | Class 600 |
| Body Material - Valves | Carbon Steel |
| Connection Type | Socket |
| Pipe Size - Valves | 1/2 in |
| Valve Max. Fluid Temp. | 800 Degrees F |
| Valve Stem Type | Rising |
| Top of Handle to Inlet Center | 6 19/64 in |
| Inlet to Outlet Length | 3 13/64 in |
| Stem Material | 410 Stainless Steel |
| Wedge Material | Stainless Steel |
| Handle Material | Carbon Steel |
| Handle Type | Hand Wheel |
| Standards | API 598 Shell and Leak Test, ASME B16.34 |
