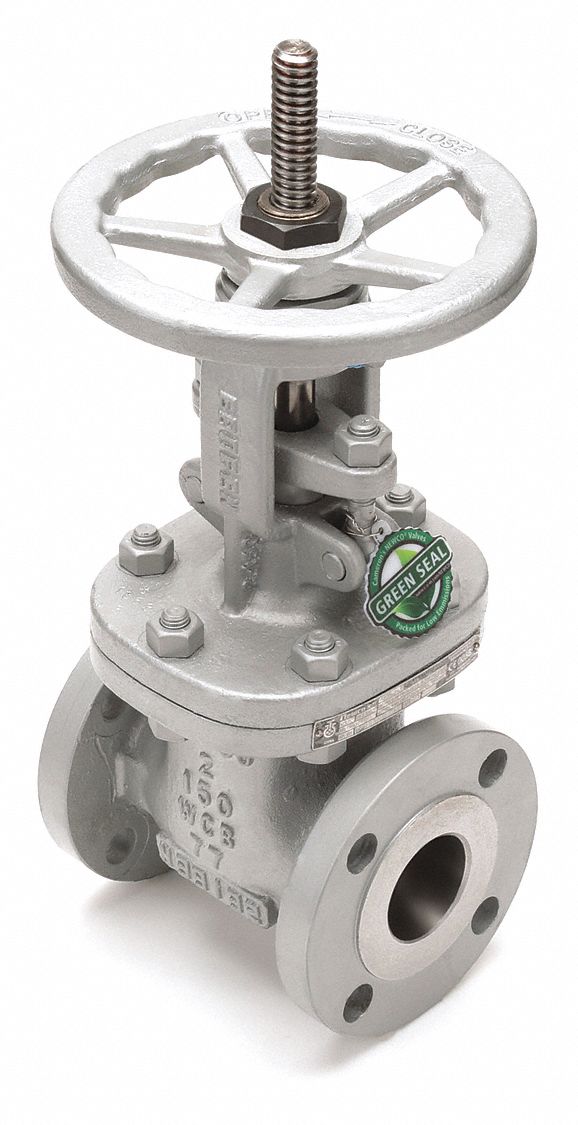

Outside Stem and Yoke Gate Valve; Valve Class: Class 150; Body Material - Valves: Carbon Steel; Connection Type: 150# Flanged; Pipe Size - Valves: 4 in; Valve Max. Fluid Temp.: 800 Degrees F; Valve Stem Type: Rising; Top of Handle to Inlet Center: 22 19/32 in; Inlet to Outlet Length: 9 in; Stem Material: 410 Stainless Steel; Wedge Material: 410 Stainless Steel; Handle Material: Ductile Cast Iron; Handle Type: Hand Wheel; Standards: API 598 Shell and Leak Test, ASME B16.34
| Item | Outside Stem and Yoke Gate Valve |
| Valve Class | Class 150 |
| Body Material - Valves | Carbon Steel |
| Connection Type | 150# Flanged |
| Pipe Size - Valves | 4 in |
| Valve Max. Fluid Temp. | 800 Degrees F |
| Valve Stem Type | Rising |
| Top of Handle to Inlet Center | 22 19/32 in |
| Inlet to Outlet Length | 9 in |
| Stem Material | 410 Stainless Steel |
| Wedge Material | 410 Stainless Steel |
| Handle Material | Ductile Cast Iron |
| Handle Type | Hand Wheel |
| Standards | API 598 Shell and Leak Test, ASME B16.34 |
