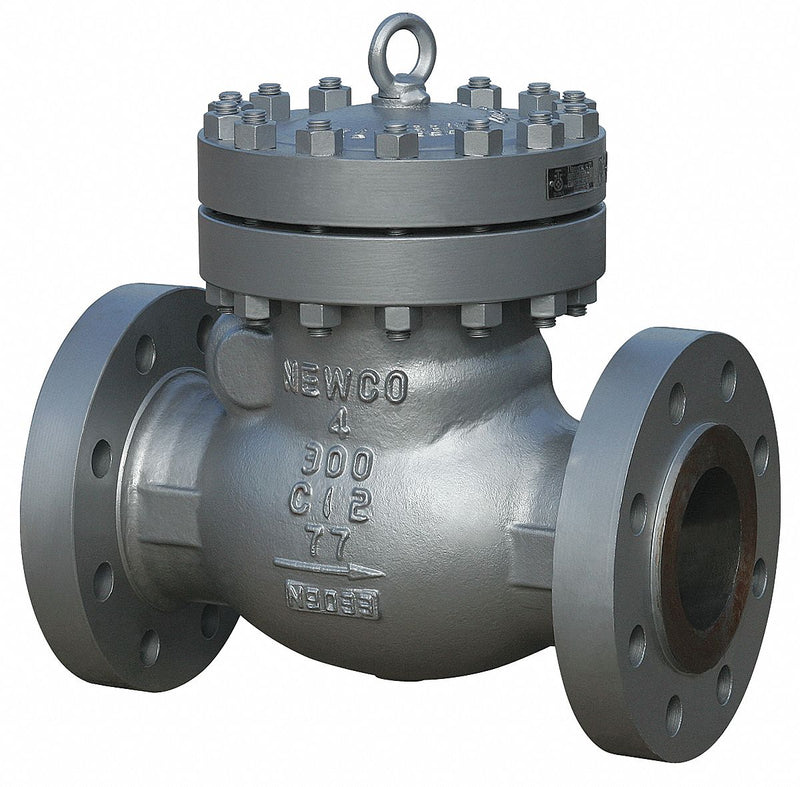

Carbon Steel,316 stainless steel seal, carbon steel seat.,Meet API 698.,Flanged-End Swing Check Valves,Allow flow in only 1 direction to prevent backflow; Mount horizontally, except cast-iron models mount vertically or horizontally.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Carbon Steel |
| Pipe or Tube Size - Check Valves | 10 in |
| Connection Type - Check Valves | Flange x Flange |
| Cracking Pressure - Check Valves | 0.058 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | 316 Stainless Steel |
| Max. Temp. - Valves | 800 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 740 psi @ 100 Degrees F |
| Max. Steam Pressure - Valves | 410 psi WSP |
| Seat Material - Check Valves | Carbon Steel |
| Flow - Valves | 3,574 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | Process Piping |
| Length | 24 1/2 in |
| Width | 17 1/2 in |
| Overall Height | 27 1/2 in |
| Cap to Inlet Center | 18 45/64 in |
| Standards | ASME B16.34/API 600, Test to API 698 |
