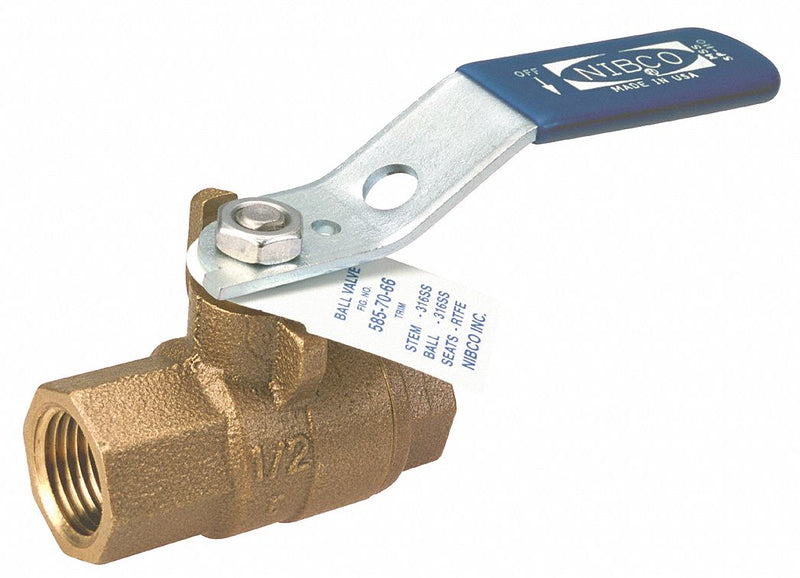

Nibco Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x FNPT - T5857066 1/2

NibcoSKU: C1933855
MPN : T5857066 1/2
Weight : 0.7 lb
filler

Price:
$48.20 $58.78

Availability : Usually Ships in 3-5 Business Days

Bronze is an alloy consisting of copper and mostly tin, but can also include other metals such as aluminum, manganese, or phosphorous. This bronze valve is harder than brass, and can resist corrosion and metal fatigue better than steel.

ItemBall Valve
Body MaterialBronze
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x FNPT
PortFull
Max. Pressure600 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 400 Degrees F
Ball Material316 Stainless Steel
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel Clear Chromate Plastisol Coated
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsMSS SP-110
Overall Length5.3 in
