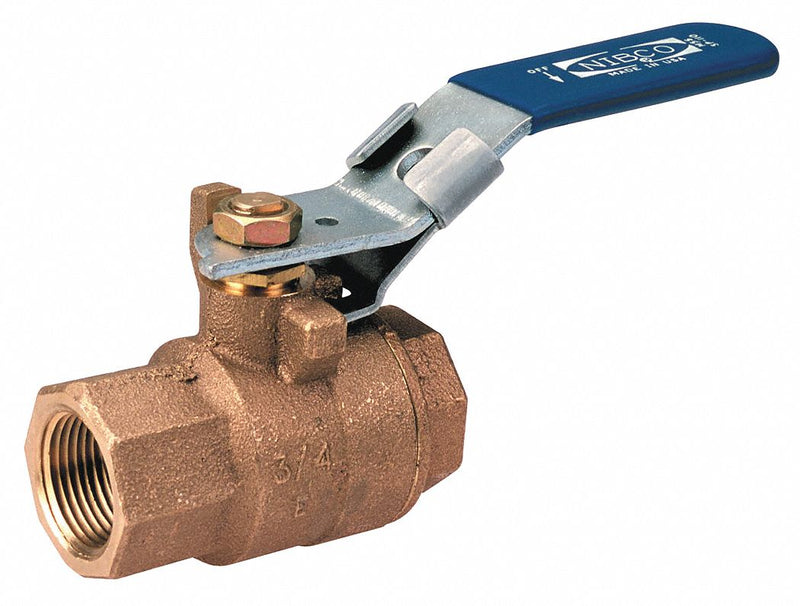

Nibco Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x FNPT - T58570LL 1/2

NibcoSKU: C1933844
MPN : T58570LL 1/2
Weight : 0.71 lb
filler

Price:
$39.73 $48.45

Availability : Usually Ships in 5-7 Business Days

Bronze is an alloy consisting of copper and mostly tin, but can also include other metals such as aluminum, manganese, or phosphorous. This bronze valve is harder than brass, and can resist corrosion and metal fatigue better than steel.

ItemBall Valve
Body MaterialBronze
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x FNPT
PortFull
Max. Pressure600 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 400 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLocking Lever
Handle MaterialZinc Plated Steel Clear Chromate Plastisol Coated
Stem MaterialSilicon Bronze
Body Seal MaterialPTFE
FeaturesHVAC, LP gas and natural gas., The two-piece valve is recommended for many high pressure applications, compressed air, hot and cold domestic water, low pressure steam
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsMSS SP-110
Overall Length5.3 in
