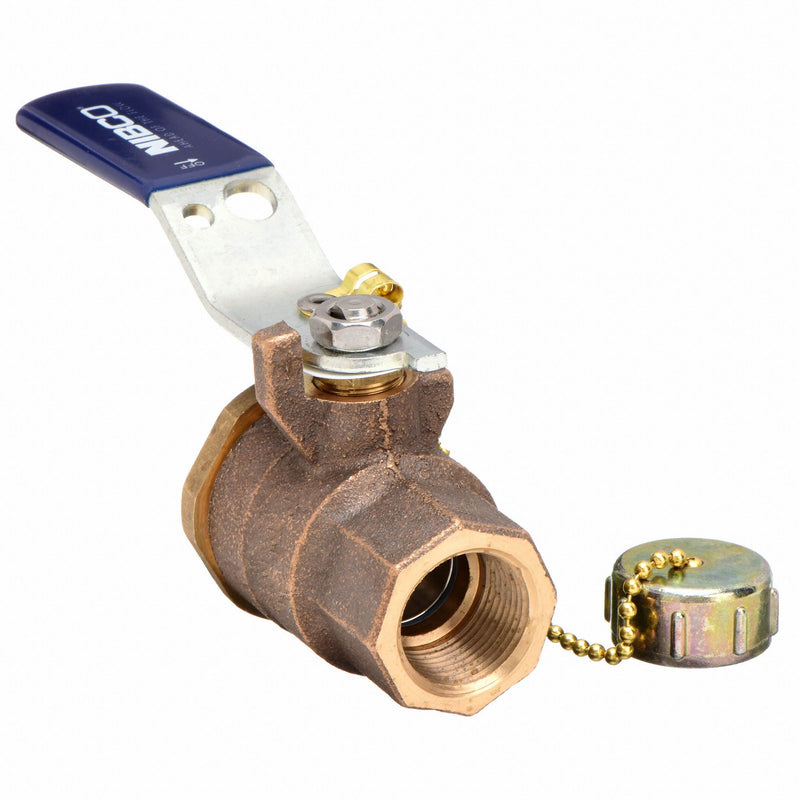

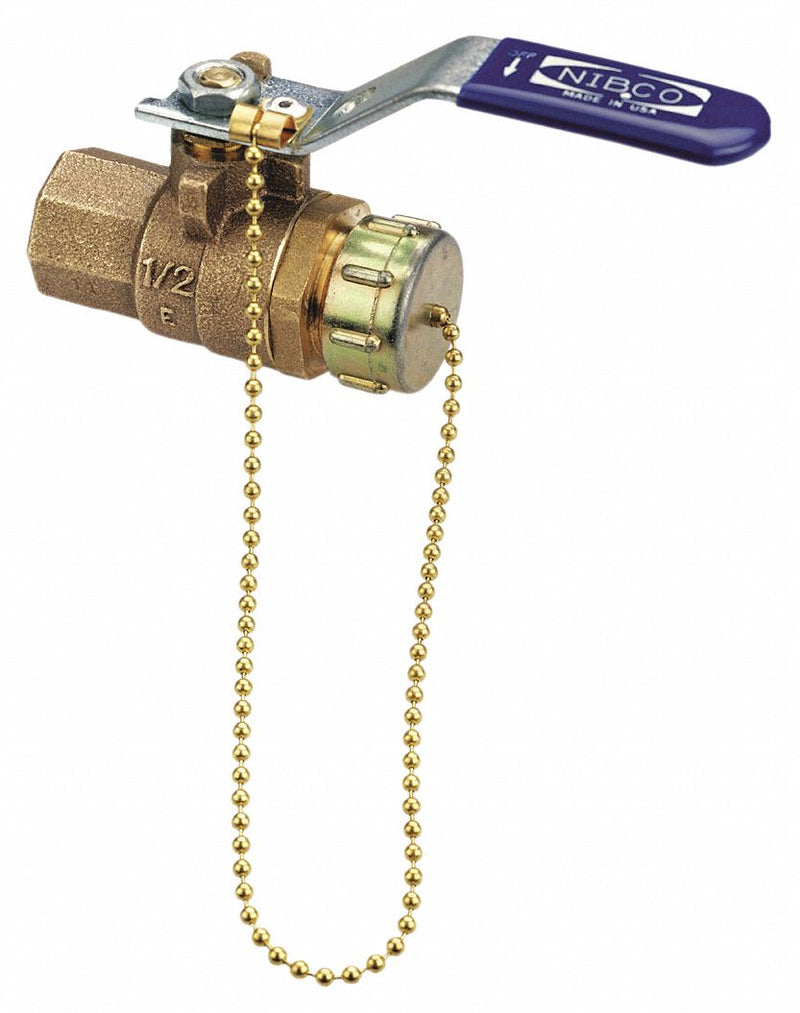

Nibco Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x Hose Cap - T58570HC 1/2

NibcoSKU: C1933863
MPN : T58570HC 1/2
Weight : 1.0 lb

filler

Price:
$60.42 $97.45

Availability : Usually Ships in 8 Business Days

Bronze is an alloy consisting of copper and mostly tin, but can also include other metals such as aluminum, manganese, or phosphorous. This bronze valve is harder than brass, and can resist corrosion and metal fatigue better than steel.

ItemBall Valve
Body MaterialBronze
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x Hose Cap
PortFull
Max. Pressure600 psi CWP
Temp. Range-20 Degrees to 400 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel Clear Chromate Plastisol Coated
Stem MaterialSilicon Bronze
Body Seal MaterialPTFE
Hose I.D.3/4 in
FeaturesThe NIBCO(R) two-piece ball valve is ideal for commercial and light industrial applications that require garden hose connections for drainage purposes.
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsMSS SP-110
Overall Length5.3 in
