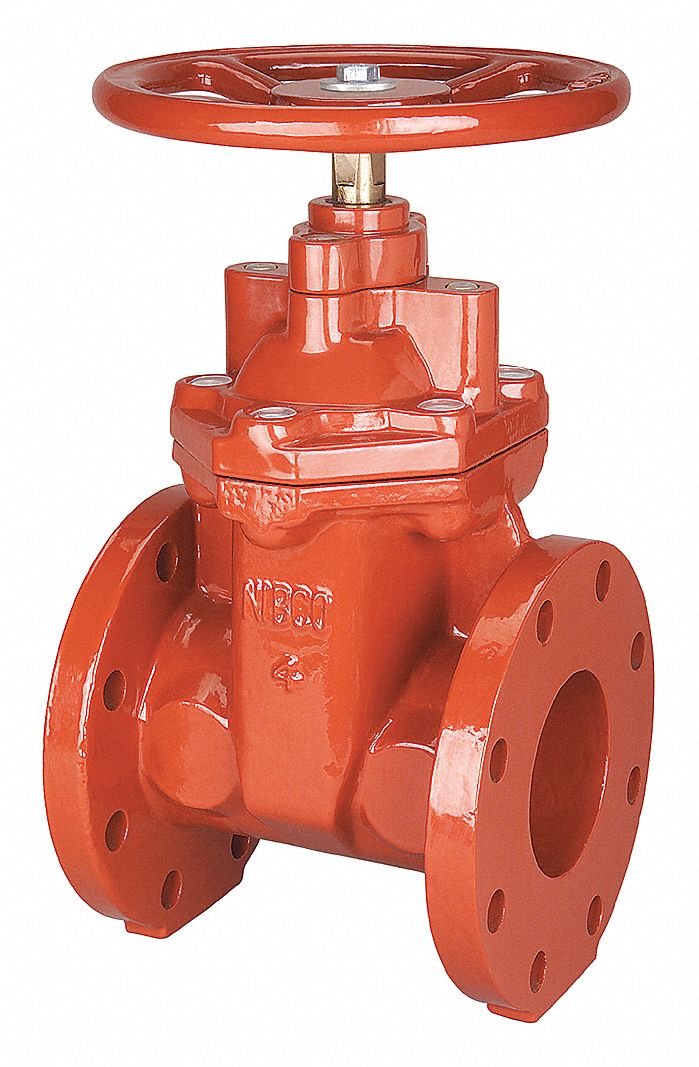

Nibco Gate Valve, Valve Class Class 125, Ductile Iron, Flange Connection Type, Pipe Size - Valves 3 in - F619RW 3

NibcoSKU: C1915525
MPN : F619RW 3
Weight : 49.0 lb


$719.53 $1,160.53

Availability : Usually Ships in 1-3 Business Days

Nibco, Class 125, Ductile-Iron, Max. pressure: 250 psi nonshock CWP Max. temp.: 160F Ductile-iron bonnet, wedge, and handwheel,Low-lead and certified for use in potable water applications. Meet AWWA C509, IAPMO R&T, and NSF/ANSI 372 standards.,Aluminum and Cast- and Ductile-Iron Flanged Gate Valves

ItemGate Valve
Valve ClassClass 125
Body Material - ValvesDuctile Iron
Connection TypeFlange
Pipe Size - Valves3 in
Max. Water Pressure - CWP300 psi
Valve Max. Fluid Temp.160 Degrees F
Valve Stem TypeNon-Rising
Top of Handle to Inlet Center12 19/32 in
Inlet to Outlet Length8 in
Stem MaterialBronze
Wedge MaterialResilient
Handle MaterialDuctile Iron
Handle TypeHand Wheel
StandardsAWWA C509
