Availability : Usually Ships in 8 Business Days

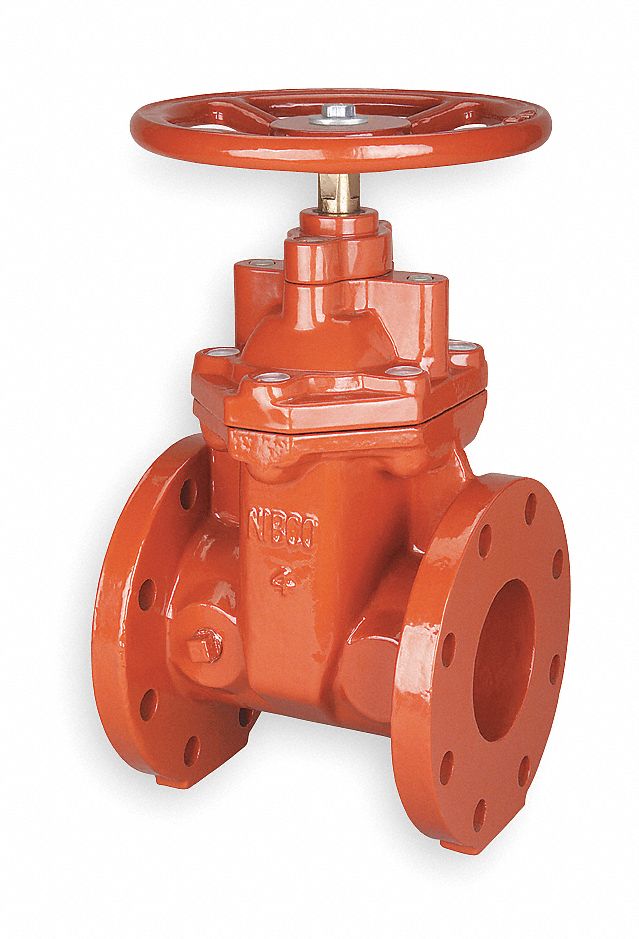

Low-lead and certified for use in potable water applications, this NIBCO cast-iron gate valve is suitable for use in cold and hot water, gas, HVAC, steam, and other general utility services. Model can be used in most commercial and industrial applications.,Meets IAPMO R&T and NSF/ANSI 372 standards,5-yr. limited manufacturers warranty
Item | Gate Valve |
Valve Class | Class 125 |
Body Material - Valves | Ductile Iron |
Connection Type | Flange |
Pipe Size - Valves | 4 in |
Max. Water Pressure - CWP | 300 psi |
Valve Max. Fluid Temp. | 160 Degrees F |
Valve Stem Type | Non-Rising |
Top of Handle to Inlet Center | 13 1/2 in |
Inlet to Outlet Length | 9 in |
Stem Material | Bronze |
Wedge Material | Resilient |
Handle Material | Ductile Iron |
Handle Type | Hand Wheel |
Standards | AWWA C509 |
