- Features: 40 degree C ambient, 20" leads

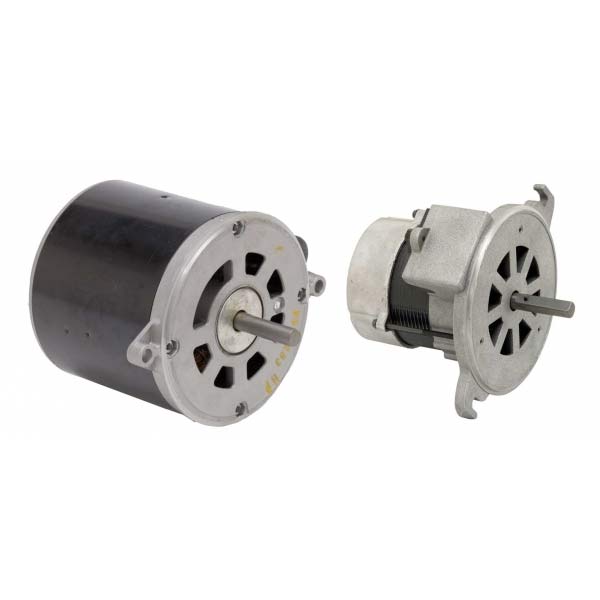

Item: Oil Burner Motor, Motor Type: Split-Phaselit Phase, HP: 1/8, Nameplate RPM: 3450, Voltage: 115, Frame: 48N, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: A, Bearings: Ball, Shaft Number: 1, Shaft Length: 2", Shaft Dia.: 0.5", "C" Dim: 7.1, Protection: Manual, Thermal Protection: Yes, Cooling: Ambient.
| Item | Oil Burner Motor |
| Motor Type | Split-Phaselit Phase |
| HP | 1/8 |
| Nameplate RPM | 3450 |
| Voltage | 115 |
| Frame | 48N |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1 |
| Insulation Class | A |
| Bearings | Ball |
| Shaft Number | 1 |
| Shaft Length | 2" |
| Shaft Dia. | 0.5" |
| "C" Dim | 7.1 |
| Protection | Manual |
| Thermal Protection | Yes |
| Cooling | Ambient |
