- Features: 40 degree C ambient

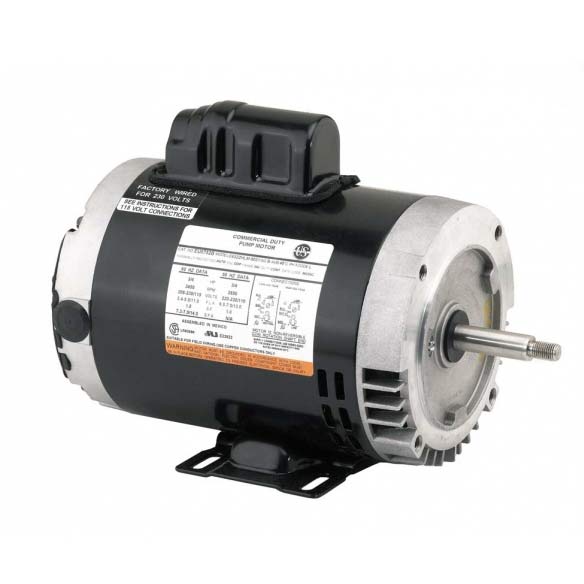

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1-1/2, Nameplate RPM: 3600, Voltage: 115/208-230, Frame: 56J, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 1, Speeds: 1, Service Factor: 1.31, Insulation Class: B, Mounting: Footless, Bearings: Ball, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.9, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | General Purpose AC Motor |
| Motor Type | Capacitor-Start |
| HP | 1-1/2 |
| Nameplate RPM | 3600 |
| Voltage | 115/208-230 |
| Frame | 56J |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 50, 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.31 |
| Insulation Class | B |
| Mounting | Footless |
| Bearings | Ball |
| Shaft Type | Threaded |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| "C" Dim | 12.9 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
