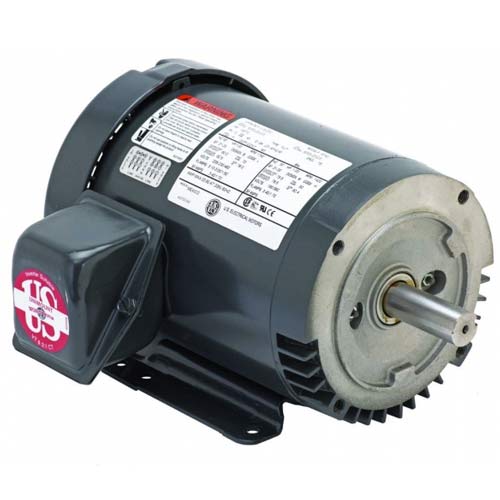

Nidec US Motors U1S2AFC 3-Phase C-Face Motor, 1 HP, 3-Phase, 1800 RPM, 208-230, 460V, 56C Frame, Updated Part: U1P2DFC

NidecSKU: C2095366
MPN : U1S2AFC
Weight : 15.0 lb
filler

Price:
$219.36 $267.51

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1, Nameplate RPM: 1800, Voltage: 208-230/460, Frame: 56C, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.25, Insulation Class: F, Mounting: Steel Edge, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.9", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 10.8, Thermal Protection: No, Cooling: Fan Cooled, Efficiency: 80. Updated Part: U1P2DFC
ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1
Nameplate RPM1800
Voltage208-230/460
Frame56C
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.25
Insulation ClassF
MountingSteel Edge
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.9"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim10.8
Thermal ProtectionNo
CoolingFan Cooled
Efficiency80
