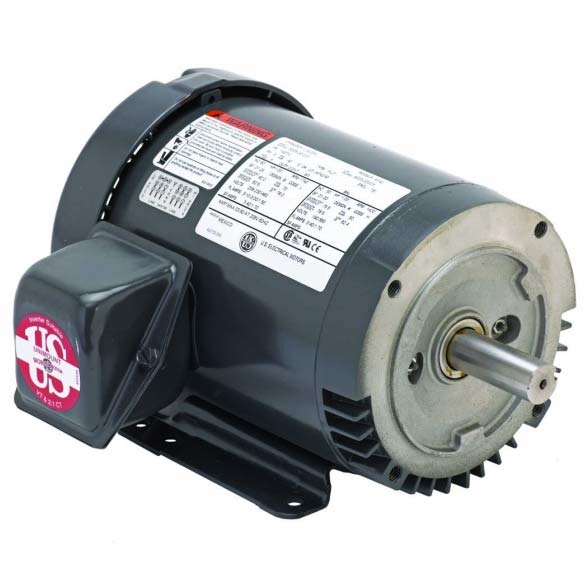

Nidec US Motors U34S3DC 3-Phase C-Face Motor, 3/4 HP, 3-Phase, 1200 RPM, 208-230, 460V, 143TC Frame

NidecSKU: C2095363
MPN : U34S3DC
Weight : 15.0 lb
filler

Price:
$368.71 $449.65

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 3/4, Nameplate RPM: 1200, Voltage: 208-230/460, Frame: 143TC, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.25, Insulation Class: F, Mounting: Steel Edge, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.31", Shaft Height: 3.5", Shaft Dia.: 0.875", "C" Dim: 12.1, Thermal Protection: No, Cooling: Fan Cooled, Efficiency: 72.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP3/4
Nameplate RPM1200
Voltage208-230/460
Frame143TC
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.25
Insulation ClassF
MountingSteel Edge
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length2.31"
Shaft Height3.5"
Shaft Dia.0.875"
"C" Dim12.1
Thermal ProtectionNo
CoolingFan Cooled
Efficiency72
