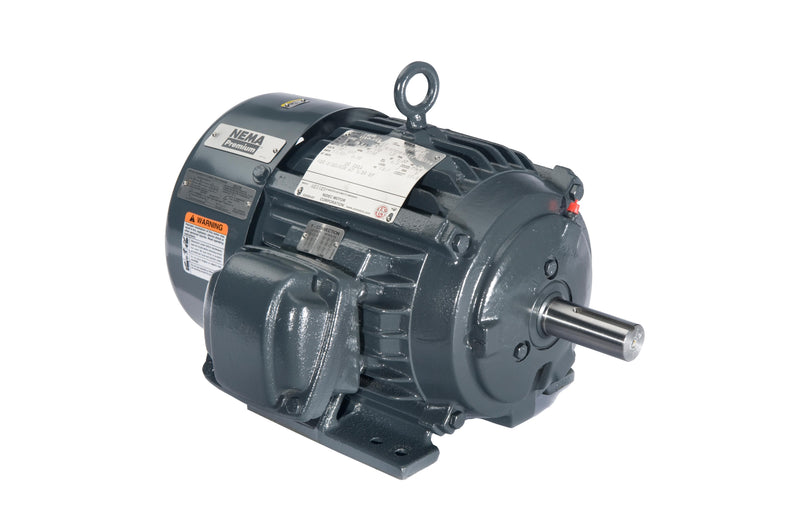

Nidec US Motors XS34S3A14 Hazard Loc 3-Phase Motor, 3/4 HP, 1200 RPM, 208-230, 460V, 143T Frame

NidecSKU: C2093659
MPN : XS34S3A14
Weight : 15.0 lb
filler

Price:
$556.26 $678.37

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Aluminum endbells

Item: Hazardous Location Motor, Motor Type: 3-Phase, HP: 3/4, Nameplate RPM: 1200, Voltage: 208-230/460, Frame: 143T, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.25", Shaft Height: 3.5", Shaft Dia.: 0.875", "C" Dim: 15, Thermal Protection: No, Cooling: Fan Cooled.

ItemHazardous Location Motor
Motor Type3-Phase
HP3/4
Nameplate RPM1200
Voltage208-230/460
Frame143T
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length2.25"
Shaft Height3.5"
Shaft Dia.0.875"
"C" Dim15
Thermal ProtectionNo
CoolingFan Cooled
