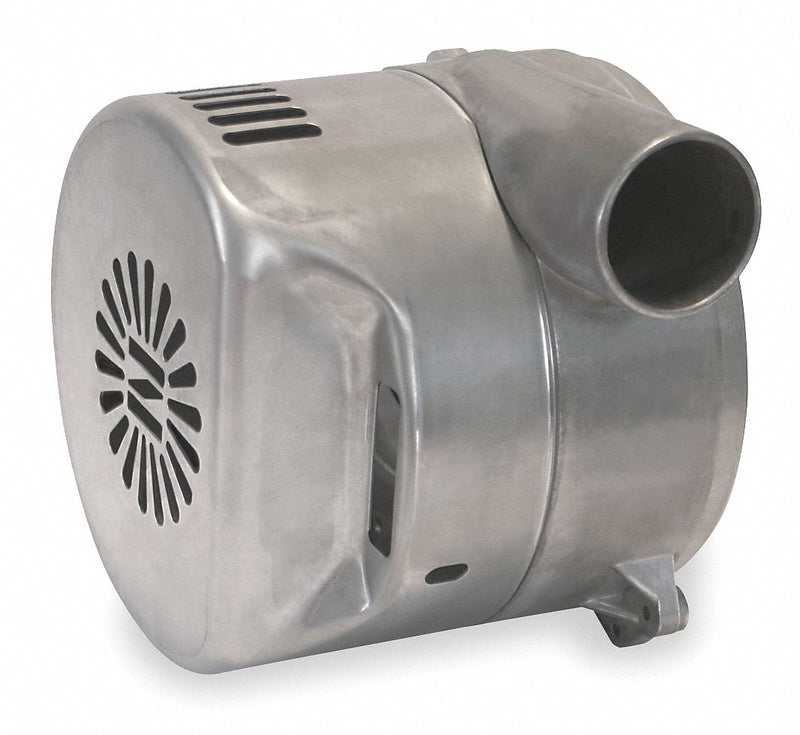

Northland Motor 120 V Voltage,Tangential Discharge Brushless Blower,64 CFM,5.7 in Body Dia. - BBA14-111SEB-00

Northland Motor TechnologiesSKU: C1545702
MPN : BBA14-111SEB-00
Weight : 5.26 lb

filler

Price:
$1,136.27 $1,832.69

Availability : Usually Ships in 20 Business Days

5.7"-Dia. Tangential Bypass Brushless DC Blowers,Enclosure: open Mounting: tab, all-position Max. ambient: 50C Thermal protection: auto Bearings: ball,Adjustable, built-in speed control makes a secondary pressure control device unnecessary. An external hose is easily attached to the exhaust tube. Included wiring harness allows hard-wiring to external power. Manually controlled units have easily-adjusted built-in trim-pot. Electronically controlled models require a remote 0 to 10VDC reference signal (not included). For use in business machines, computer peripherals, material handling, air samplers/evacuators, packaging systems, photographic medical equipment, and air beds.,RoHS Compliant.

ItemBrushless Blower
Blower TypeTangential Discharge
Motor Enclosure DesignOpen
Blower Stages1
ControlElectronic
SpeedAdjustable
CFM64
Vacuum Rating28 in wc
Voltage120 V
Hz60/50
Phase1
Max. Amps5 A
Watts400 W
Motor Mounting PositionAll Angle
Motor Thermal ProtectionAuto
Ins. ClassA
Max. Ambient Temp.50 Degrees C
ConstructionAluminum
Body Dia.5.7 in
Height5 7/8 in
Inlet Dia.1 1/4 in
Discharge Dia.1 1/4 in
