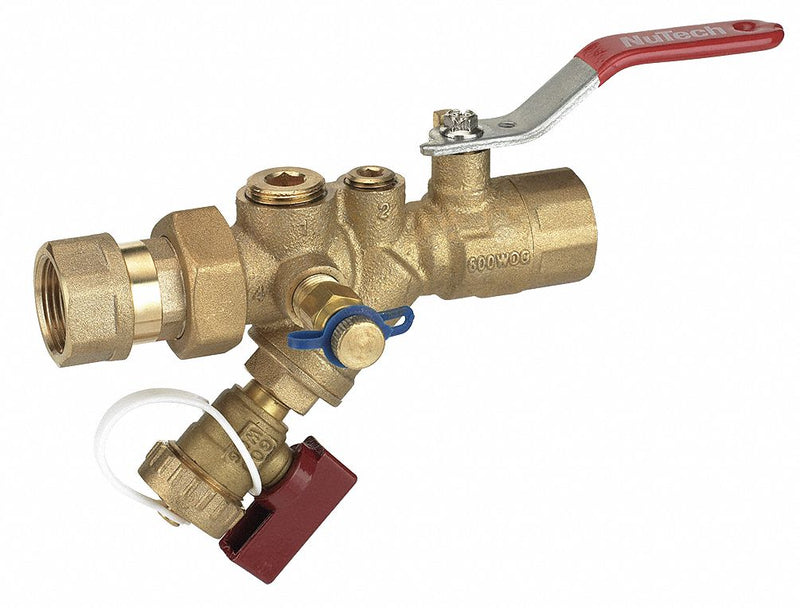

NuTech 1 1/4 in Lever Combination Strainer/Ball Valve FNPT x FNPT - SV3E-125F-125F
filler
Availability : Usually Ships in 7 Business Days
Valve features a ball valve, wye strainer, and union all in one unit. Model has a blowoutproof stem with double EPDM O-ring seals and a union with an EPDM O-ring seal. Has a 20 mesh removable stainless steel strainer to ease inspection and cleaning. For use in commercial and residential hydronic heating and cooling applications.
| Item | Combination Strainer/Ball Valve |
| Connection Type | FNPT x FNPT |
| Pipe Size | 1 1/4 in |
| Body Material | Forged Brass |
| Max. Pressure | 600 psi WOG |
| Temp. Range | Up to 250 Degrees F |
| Screen Material | Stainless Steel |
| Handle Material | Zinc Plated with Vinyl Grip |
| Handle Type | Lever |
| Bypass Port Size | 3/4 in |
| Ball Material | Chrome Plated Brass |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Overall Length | 8.06 in |
| Stem Type | Blowout Proof |
| Stem Material | Brass |
| Includes | Pressure Temperature Port, Removable Wye Strainer |
